The Hi-Cap Multi-Ripper
Bucket

From Leading Edge Attachments, Inc.


US Patent Number 7,322,133
Canadian Patent Number 2,521,725
Mexican Patent Number 272,981
Patents Granted and Pending in many other countries

 Multi-DigNRip Bucket  Hi-Cap Multi-DigNRip Bucket
Standard MRB                                                           Hi-Cap MRB


Nominated for the 2006 NOVA Award
(Click for more information)


Sharc Technology

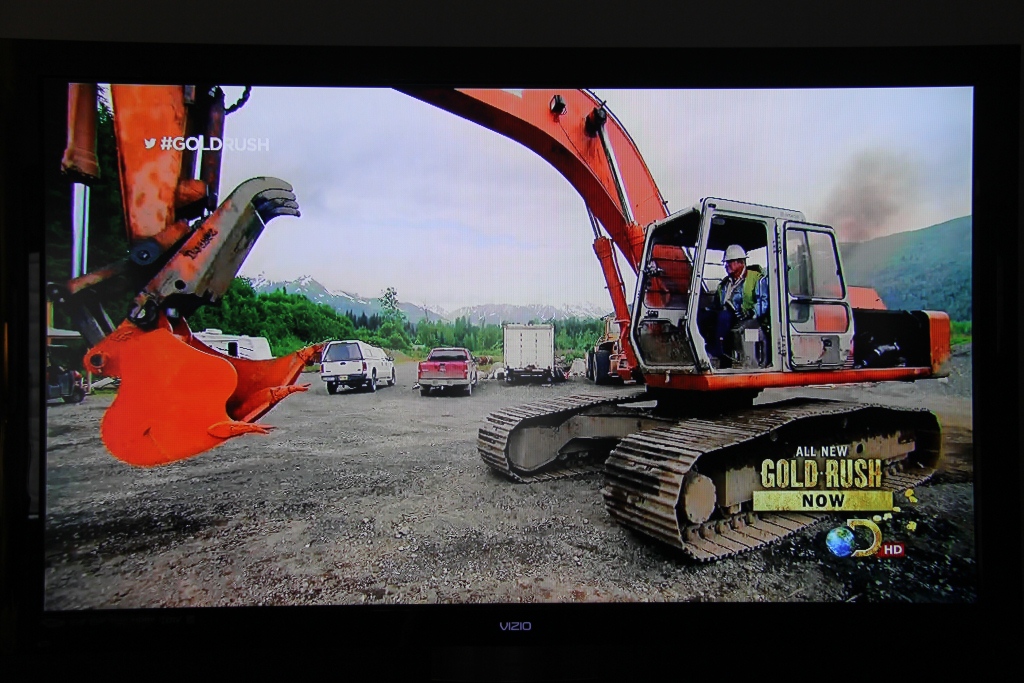

As seen on the Discovery Channel's "Gold Rush" show as
the "Bedrock Shark"
Click on the picture below to see the video segment:


Gold Rush Alaska Bedrock Shark
Gold RushGold Rush

Dustin Hurt of "Gold Rush" said "..that Hi-Cap Multi-Ripper Bucket got us to where we couldn't get before..."

email sales@leattach.com for more information
or call us to discuss your special application 508-829-4855


To read an article in "Construction Equipment Guide" magazine about this, please click this sentence.




Multi-Ripper Bucket Operation

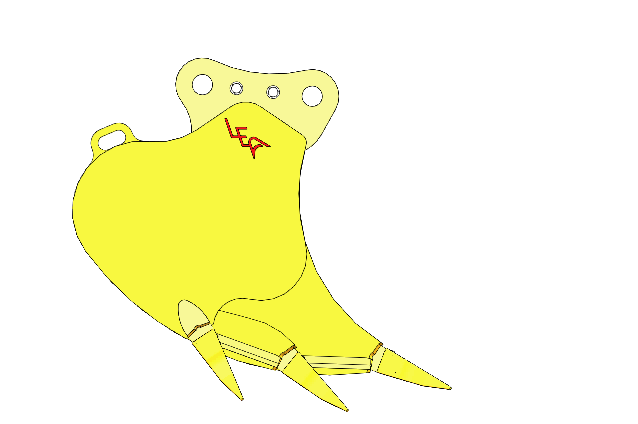

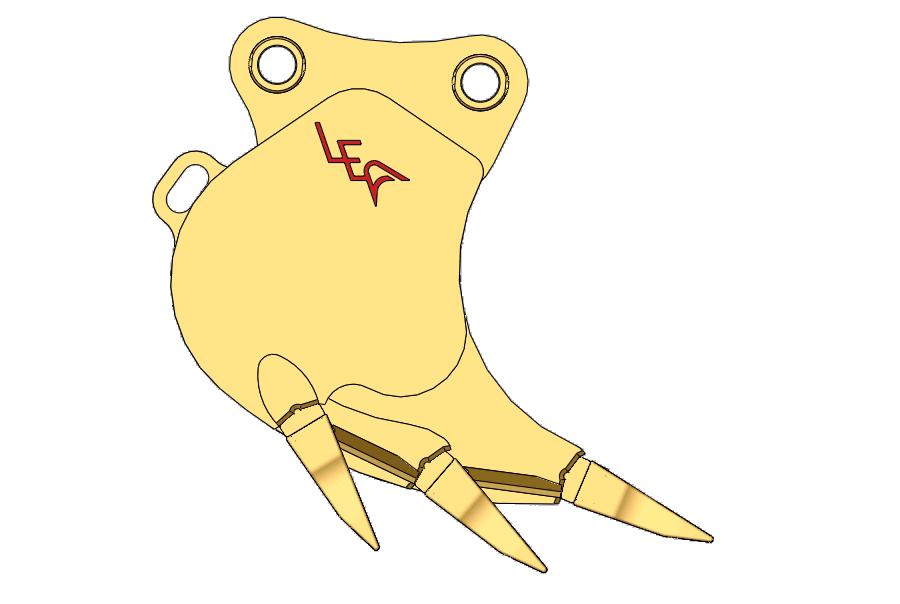

Multi-Ripper Bucket Profile

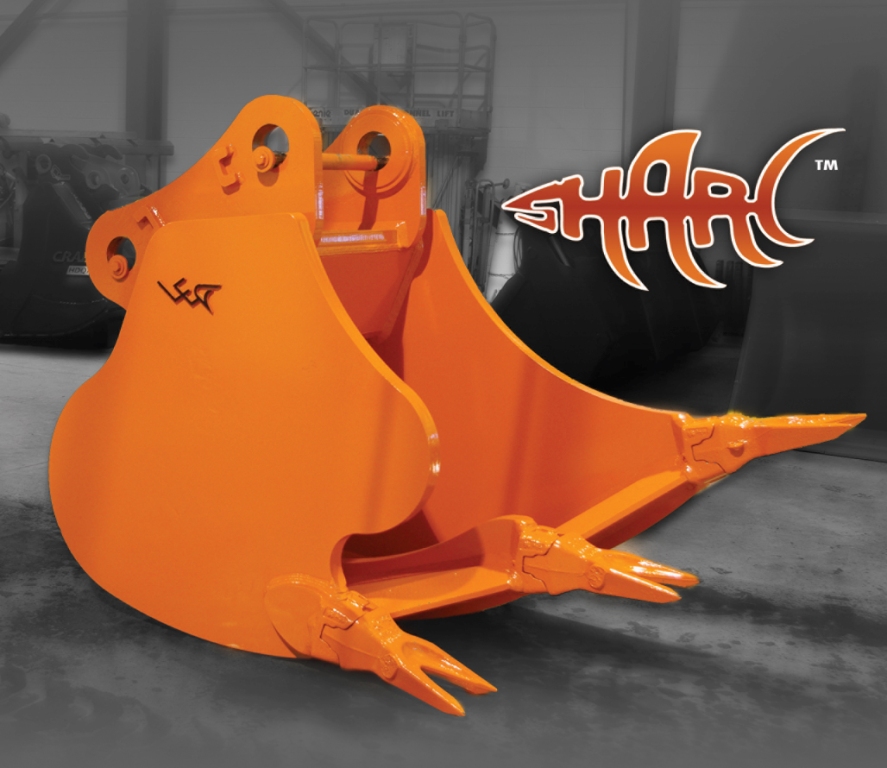

Hi-Cap Multi-Ripper SHARC Bucket

Breaks rock and frost 4 times faster than a hammer,
at a fraction of the cost.

Rips the sides and bottom of the trench flat
with no depth limitation.

Available for any excavator heavier than 6,000 pounds.
(including mini-excavators and backhoes)


Hi-Cap Multi-Ripper Bucket  Force Comparison

Click Here To Download a Multi-Ripper Brochure

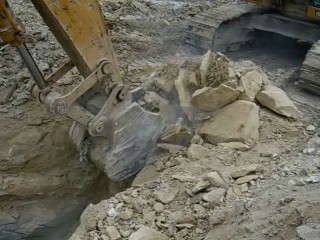

Hi-Cap Multi-Ripper Bucket

Click on the above picture to a Cat 385 video

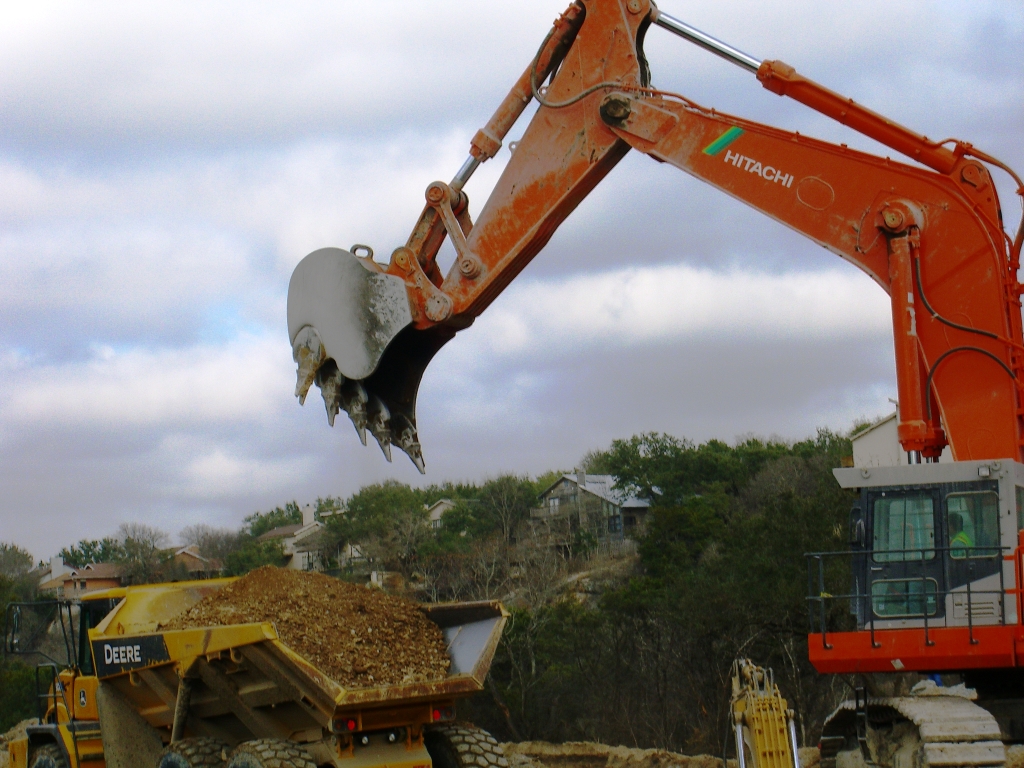

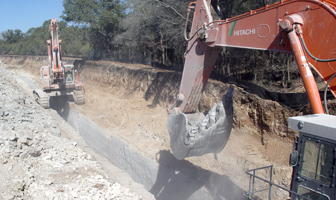

LEA HCMRB EX1200 Lime Stone

Click on the above picture to see a video of a 5 tooth Hiatchi EX1200

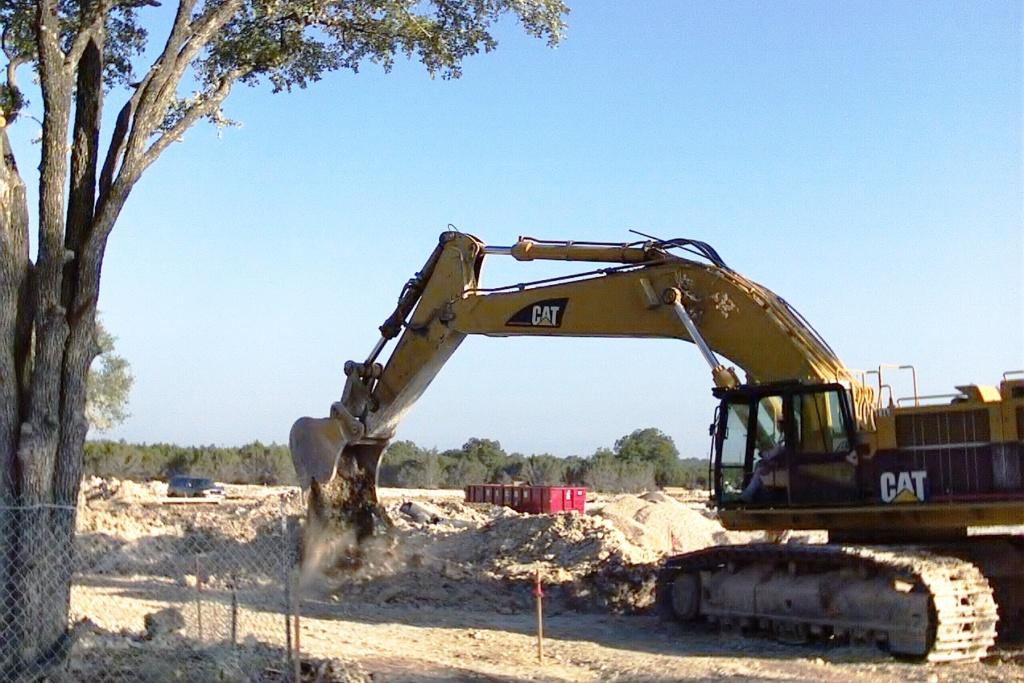

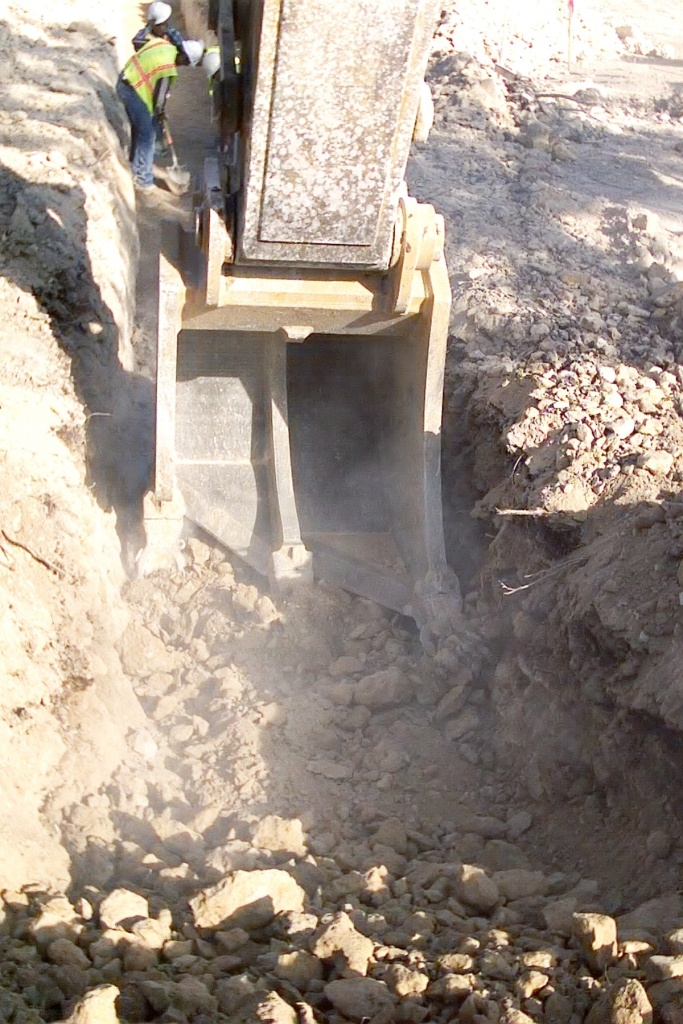

HCMRB Cat 385 1

Click on the above picture to see a different video


Cat 375
Click on the above picture to see yet a different video


Click on the following picture to read about the big job in Texas using Two Hitachi EX1200 Hi-Cap Multi-Ripper Buckets as their "secret weapon".

Multi-Ripper Bucket




Hi-Cap Multi-Ripper Bucket

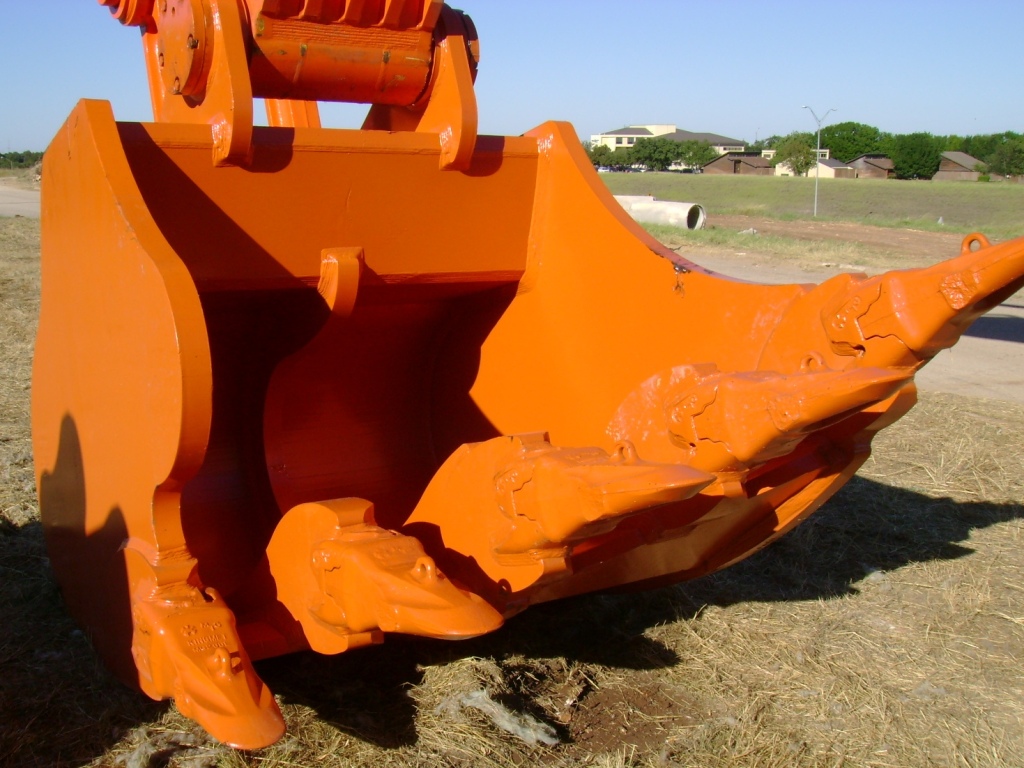

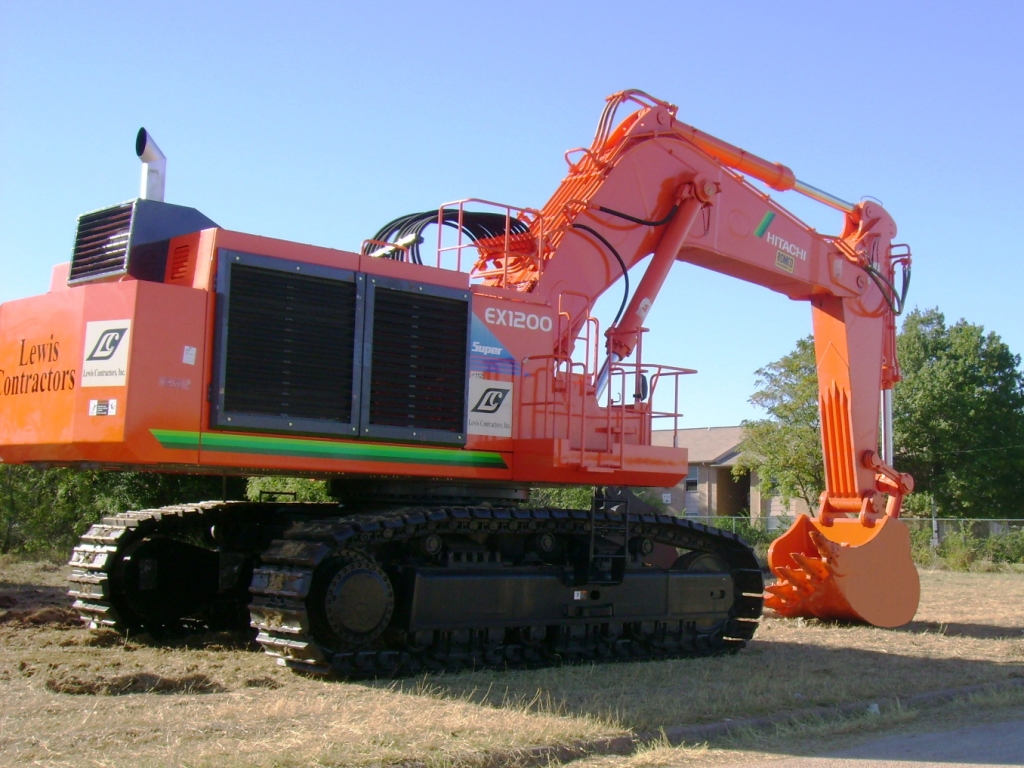

Below is a Hitachi EX1200 version of the 5 tooth Hi-Cap Multi-Ripper Bucket

5 Tooth HCMRB EX1200 1
5 Tooth HCMRB EX1200 2

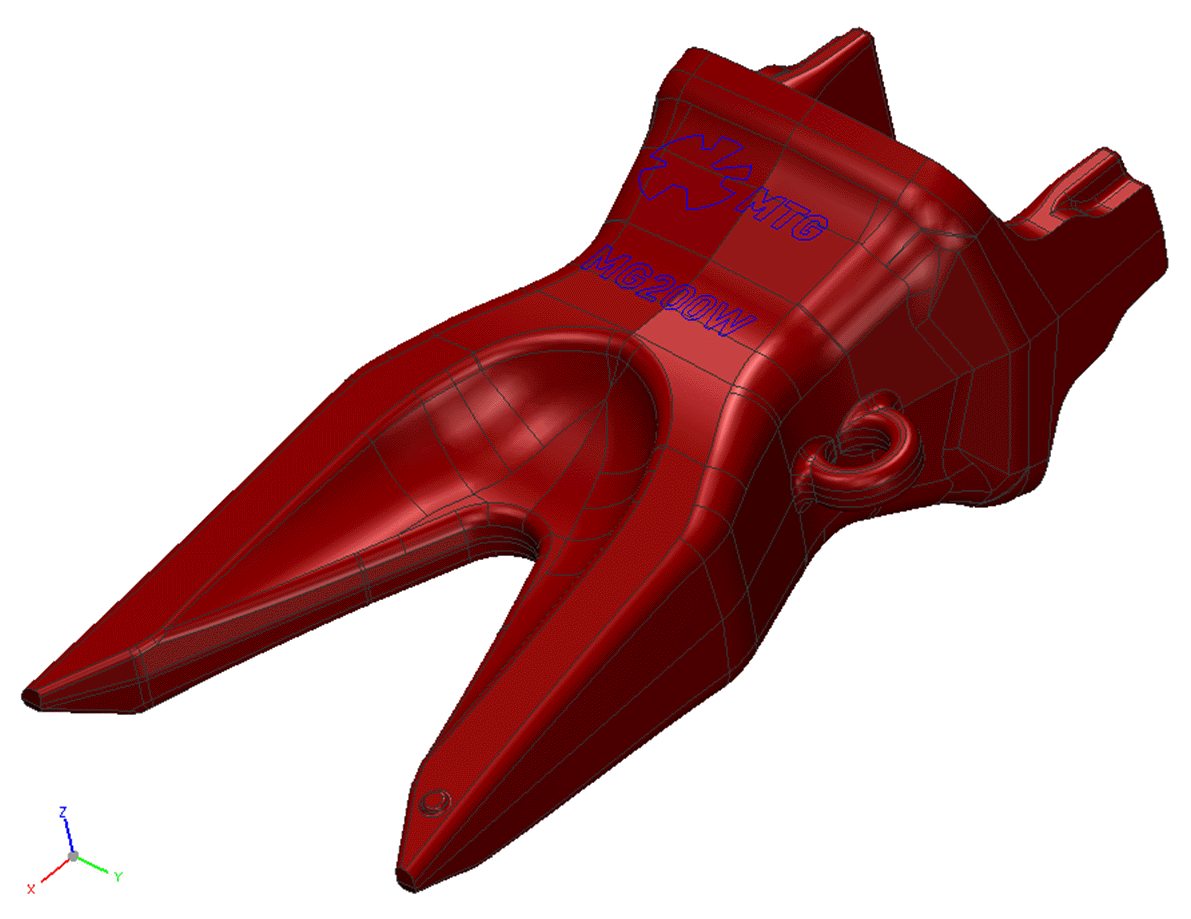

Below is the new MTG200W KingMet Double Vector Tooth that will be available in late March for the EX1200 and Komatsu PC1250 size class excavator Hi-Cap Multi-Ripper Buckets

New MTG200W KingMet Double Vector Tooth

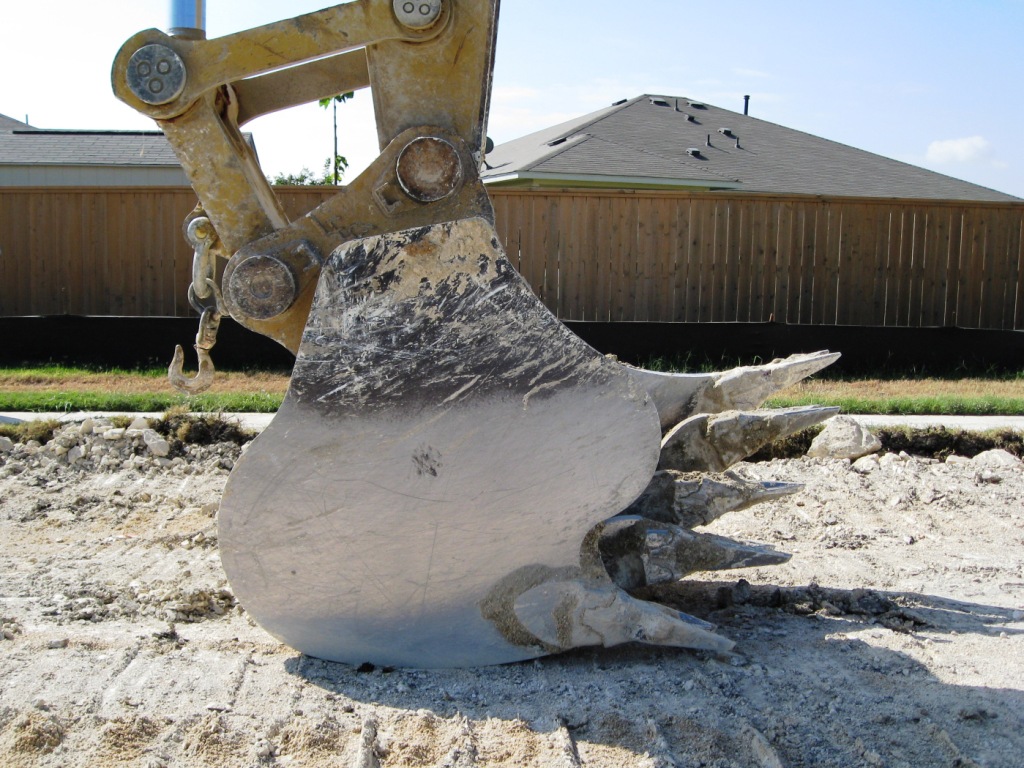

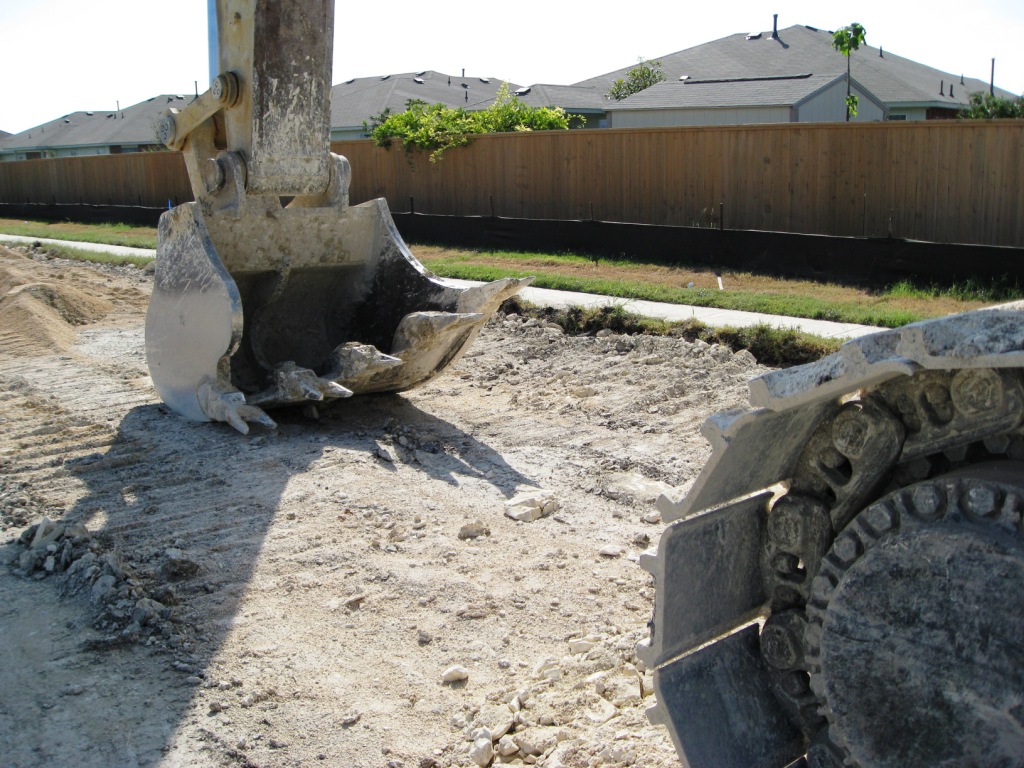

5 Tooth HCMRB 385 15 Tooth HCMRB 385 2

Hi Cap Multi-Ripper BucketHi Cap Multi-Ripper BucketHi Cap Multi-Ripper BucketHi Cap Multi-Ripper Bucket

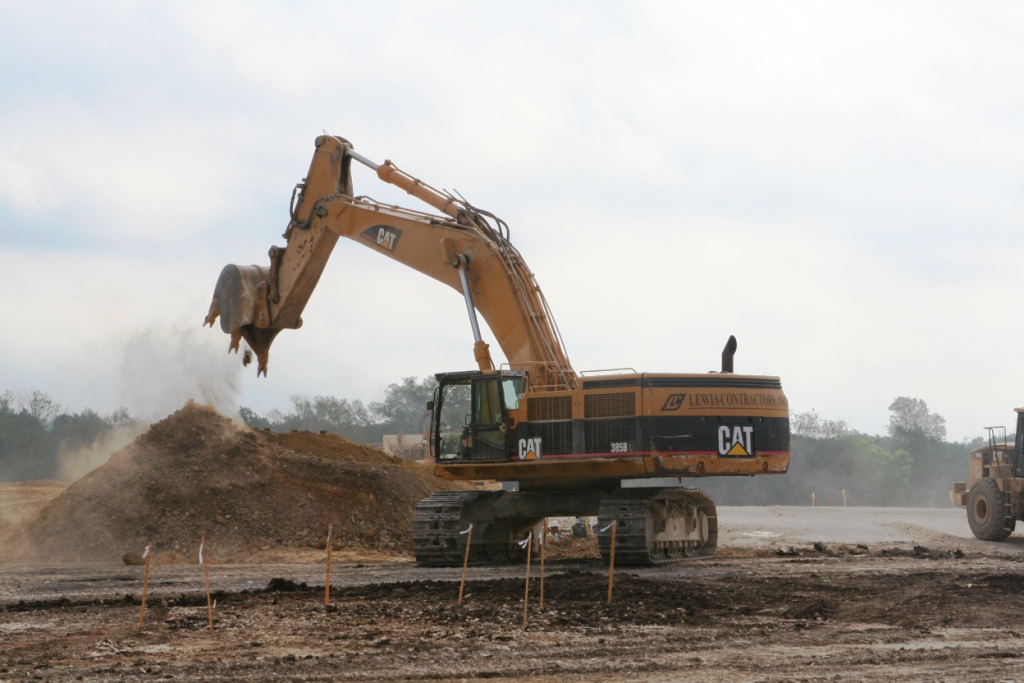

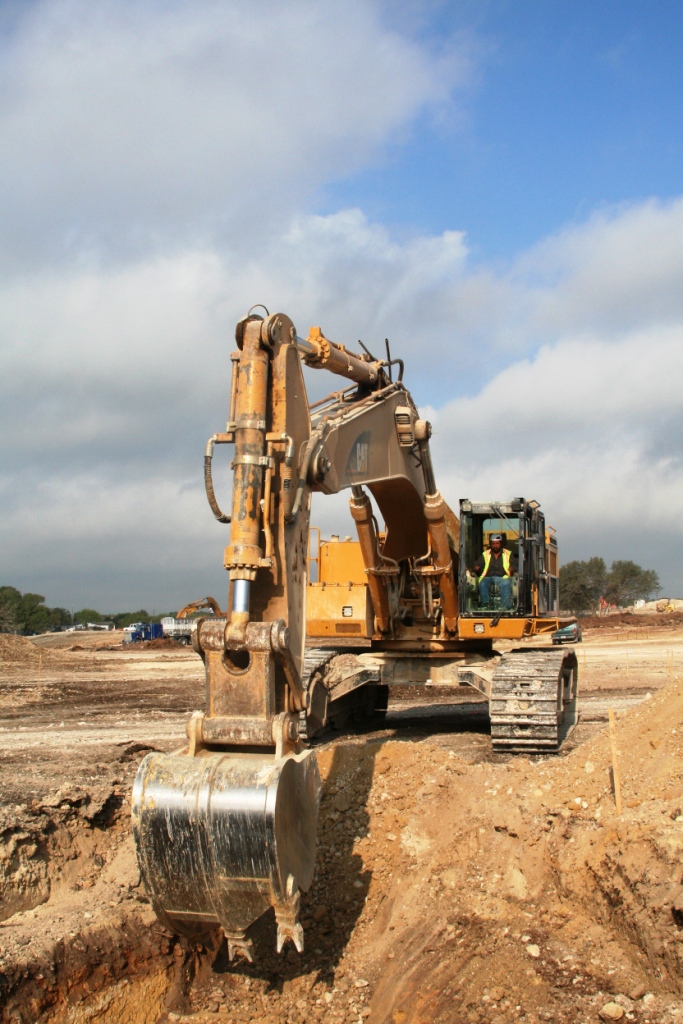

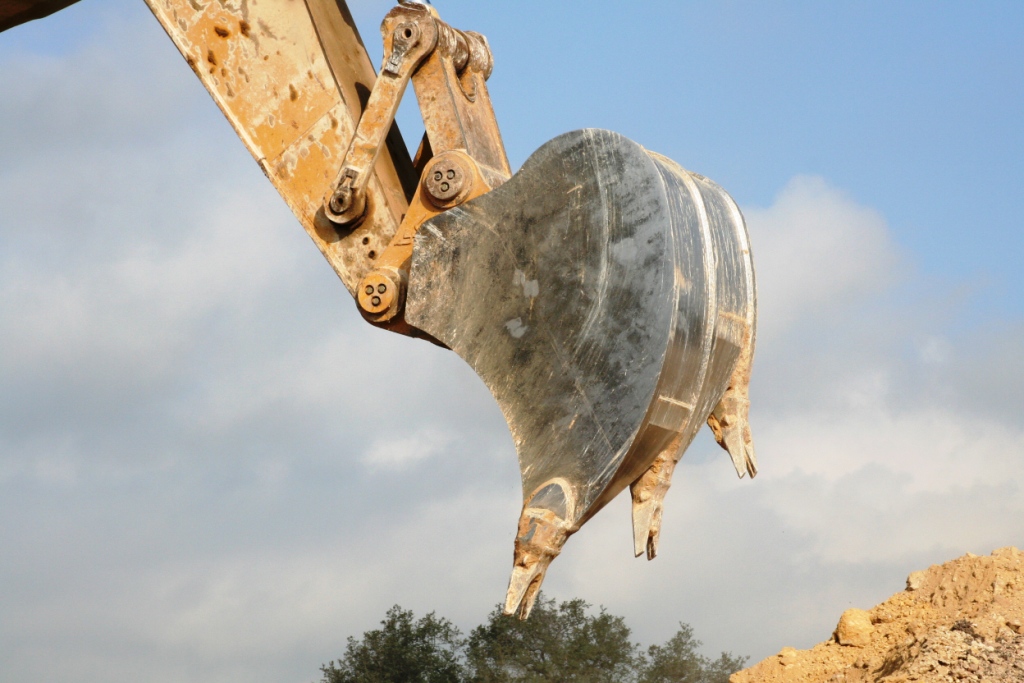

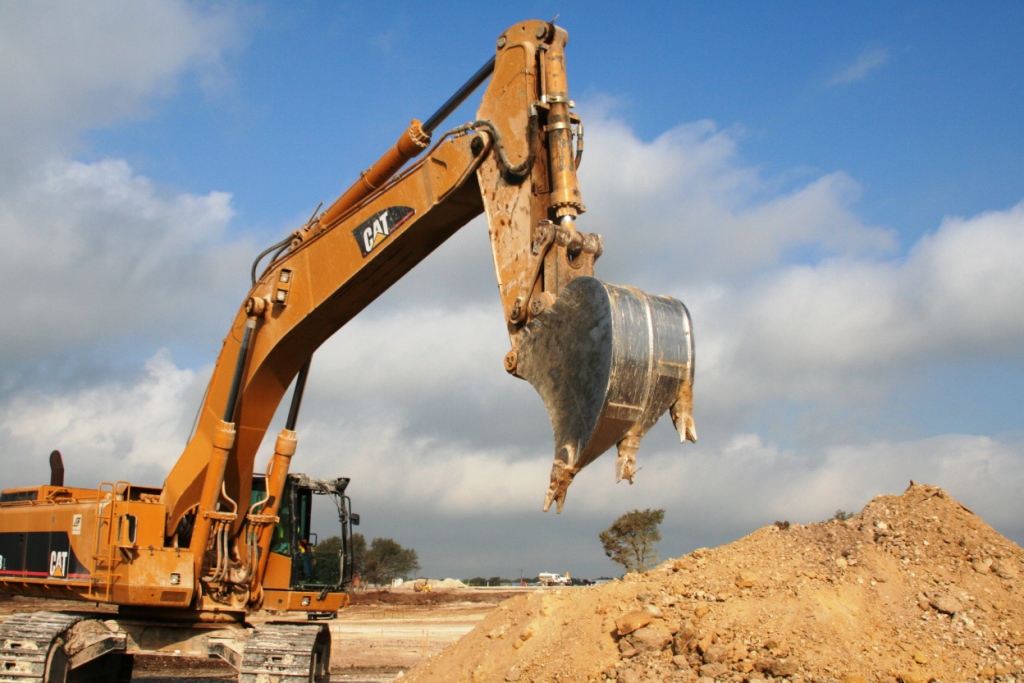

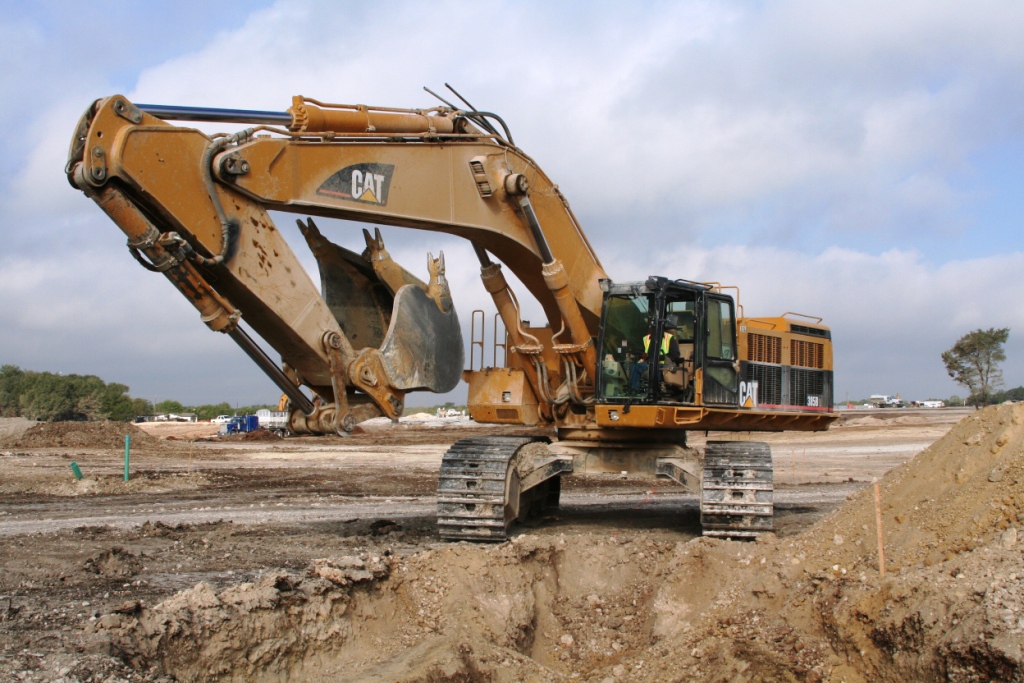

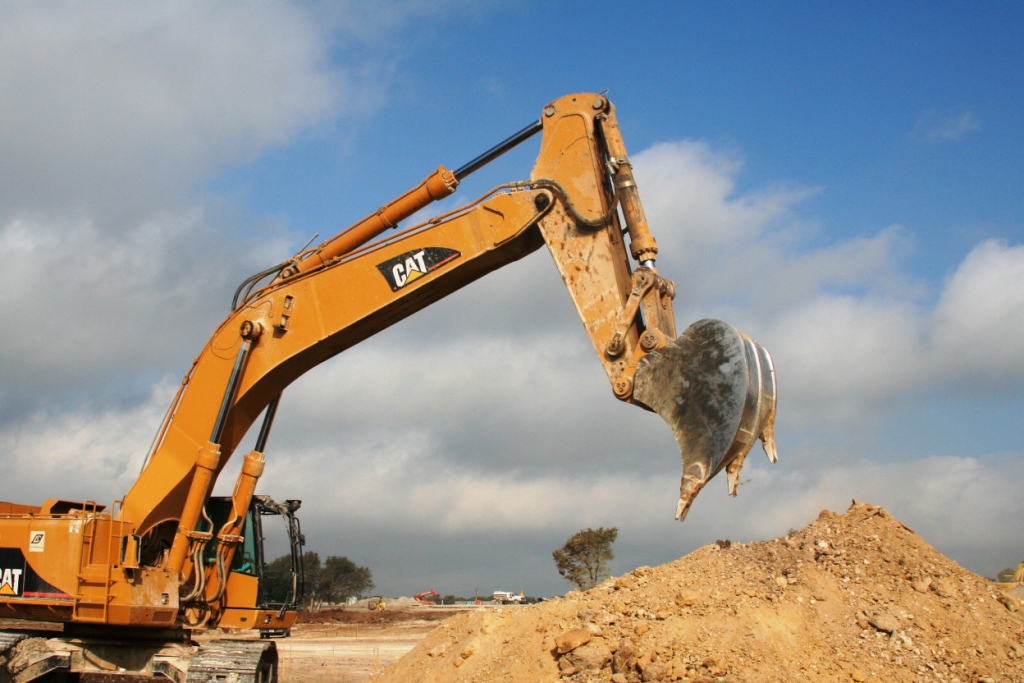

Hi-Cap Multi-Ripper Bucket Cat 385
Hi-Cap Multi-Ripper Bucket Cat 385

Hi-Cap Multi-Ripper Bucket Cat 385
Hi-Cap Multi-Ripper Bucket Cat 385

Hi-Cap Multi-Ripper Bucket Cat 385
Hi-Cap Multi-Ripper Bucket Cat 385


email sales@leattach.com for more information
or call us to discuss your special application 508-829-4855

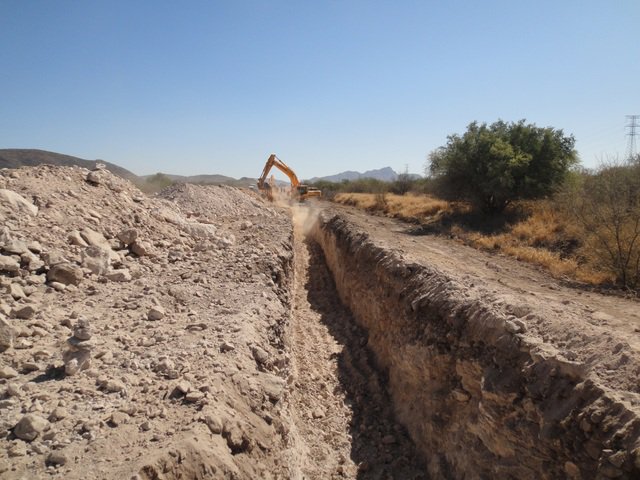

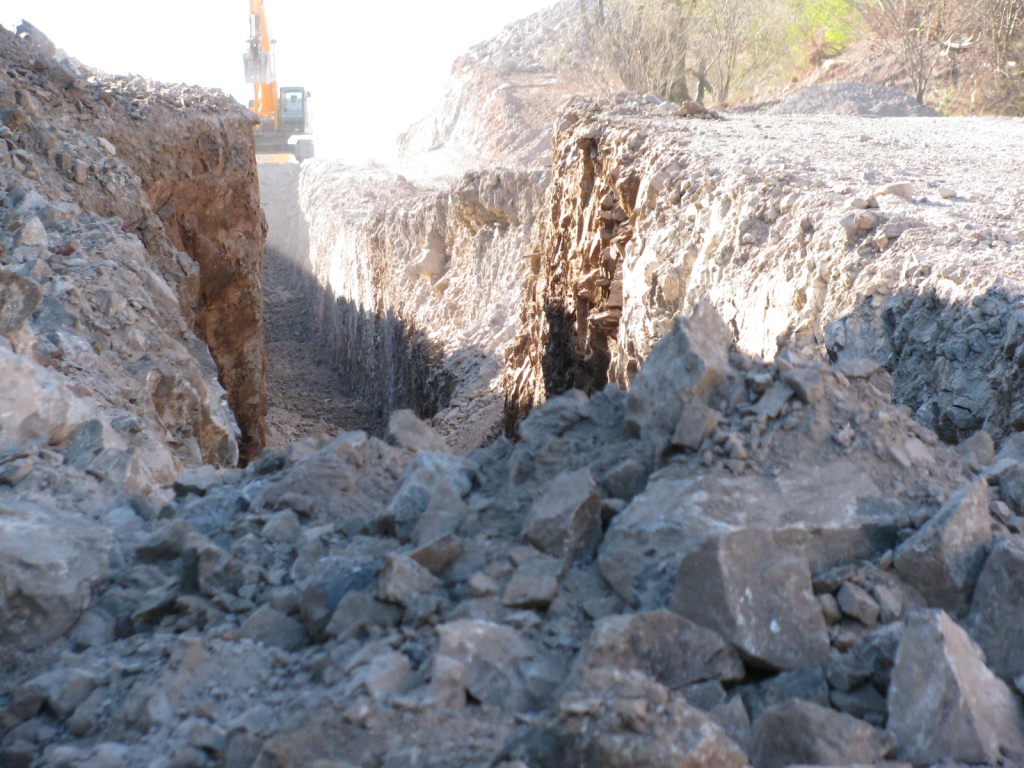

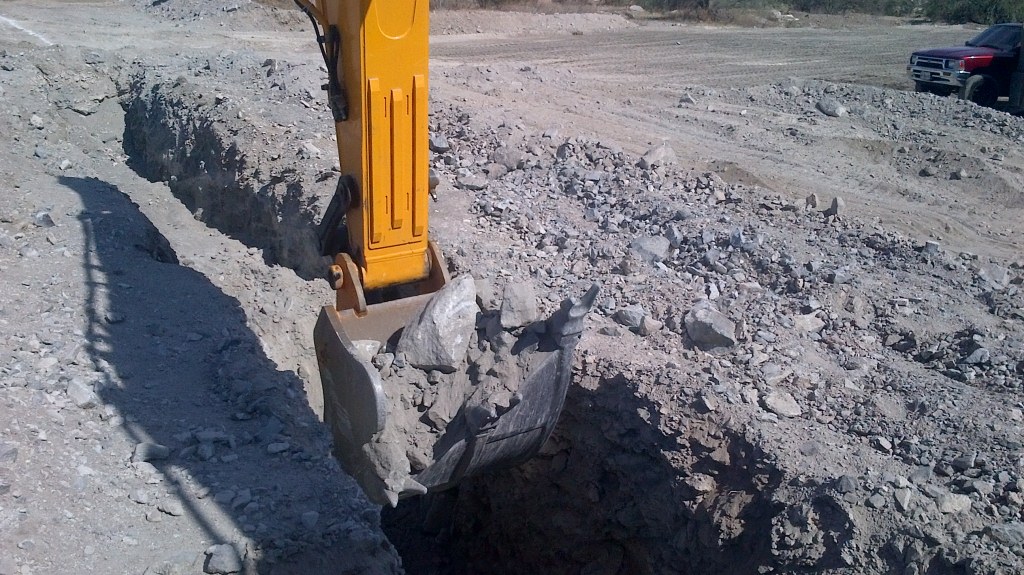

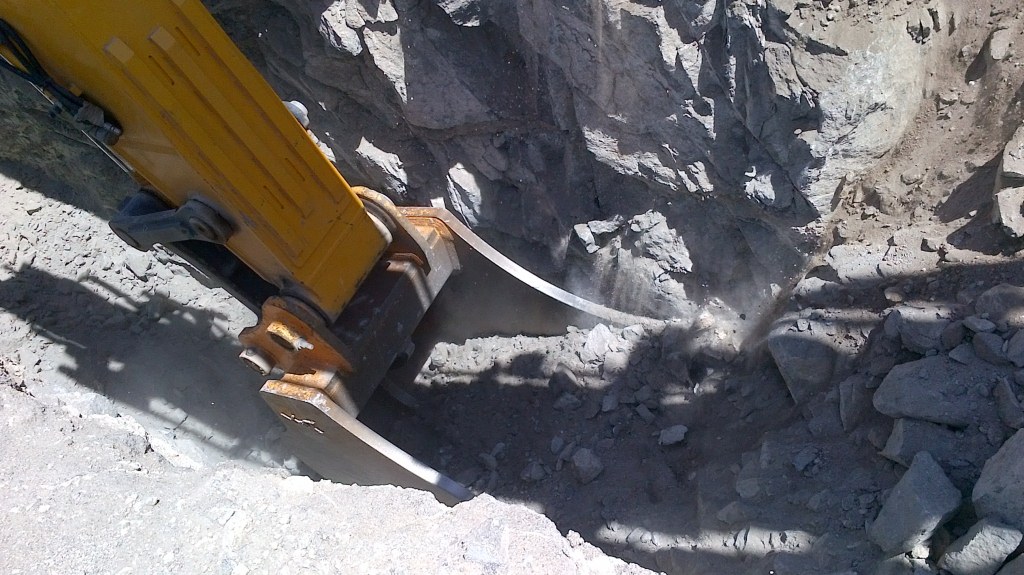

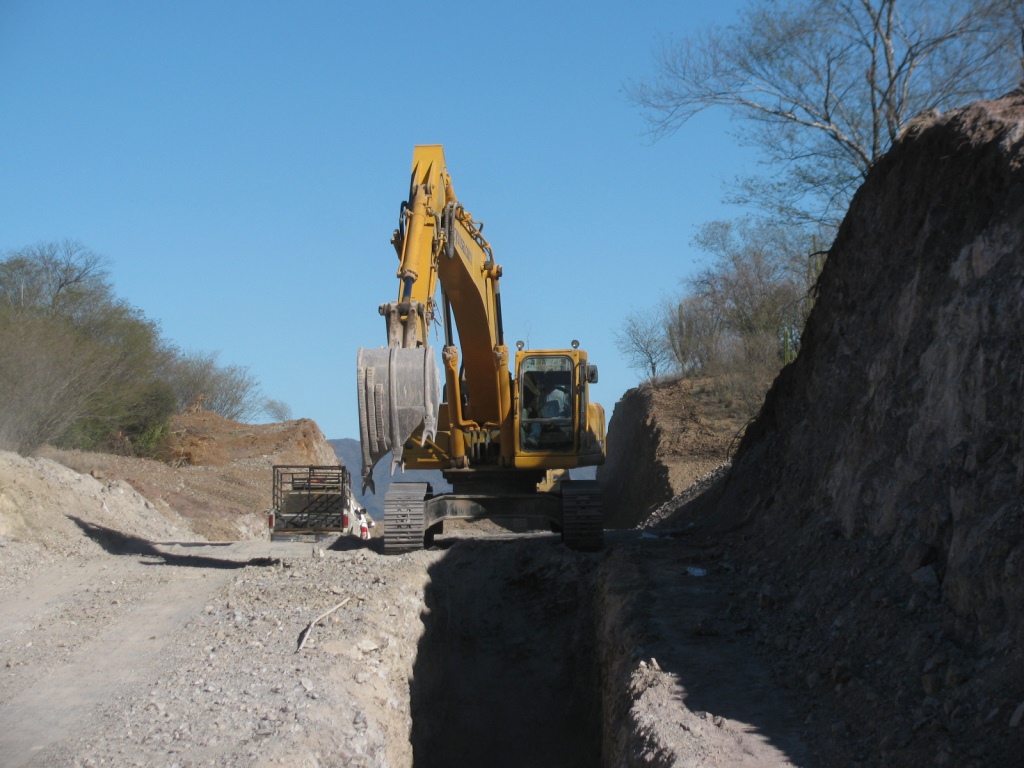

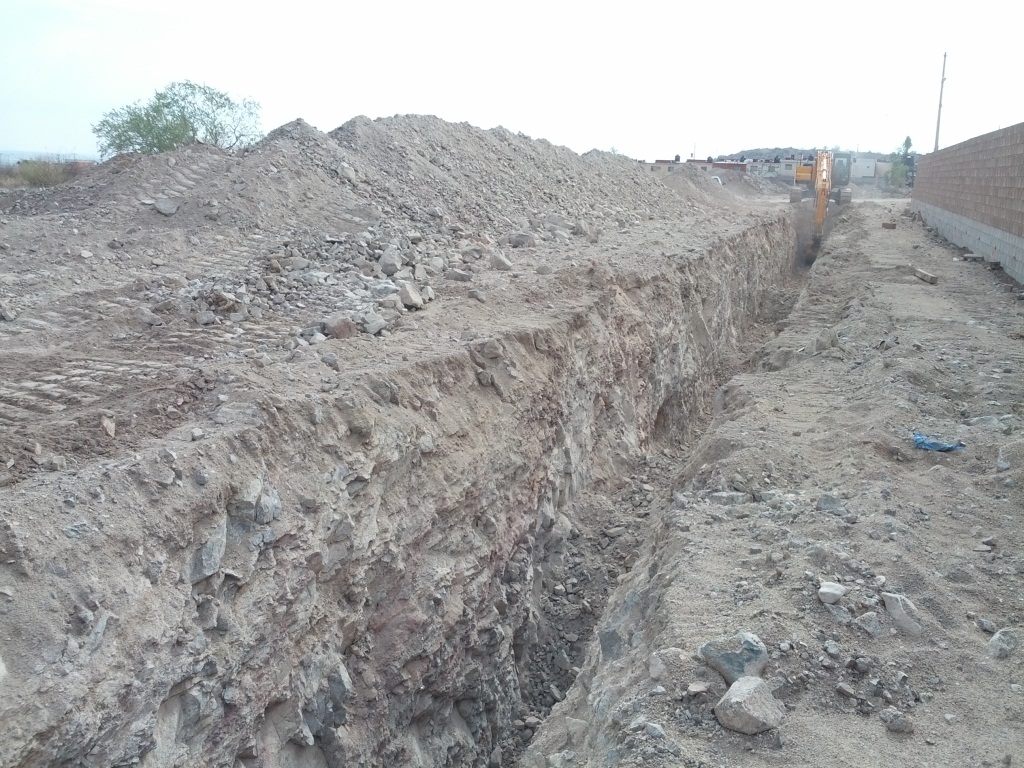

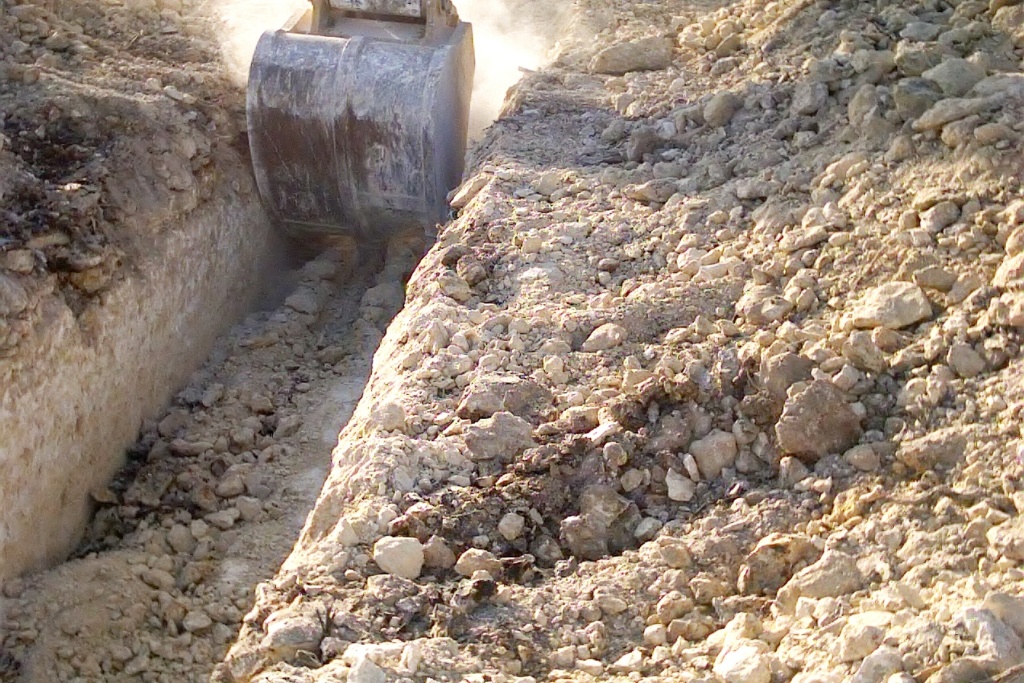

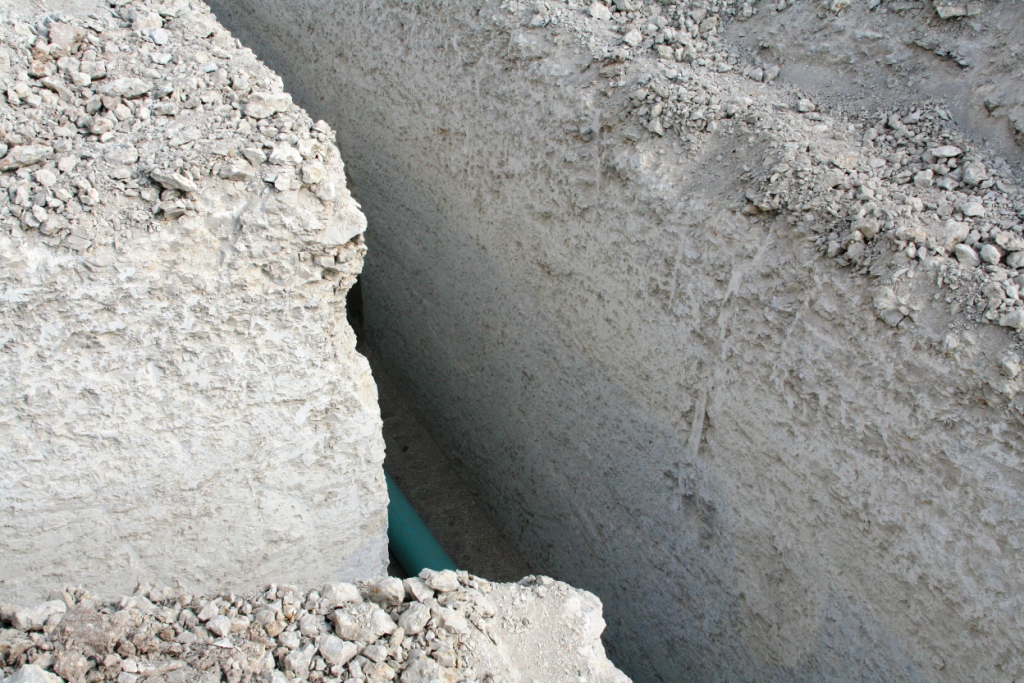

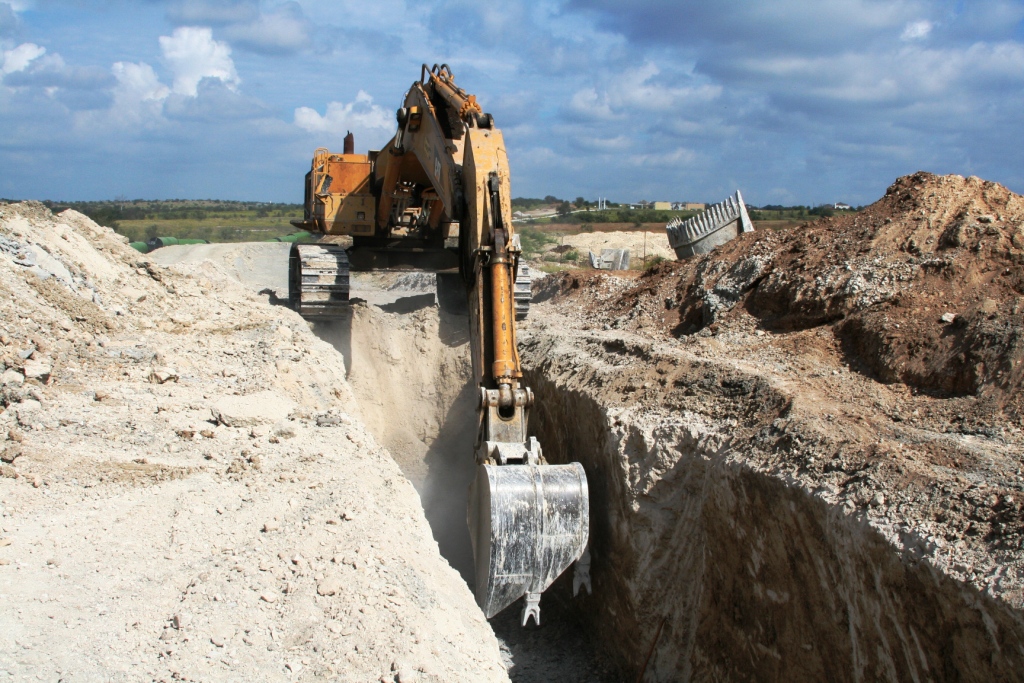

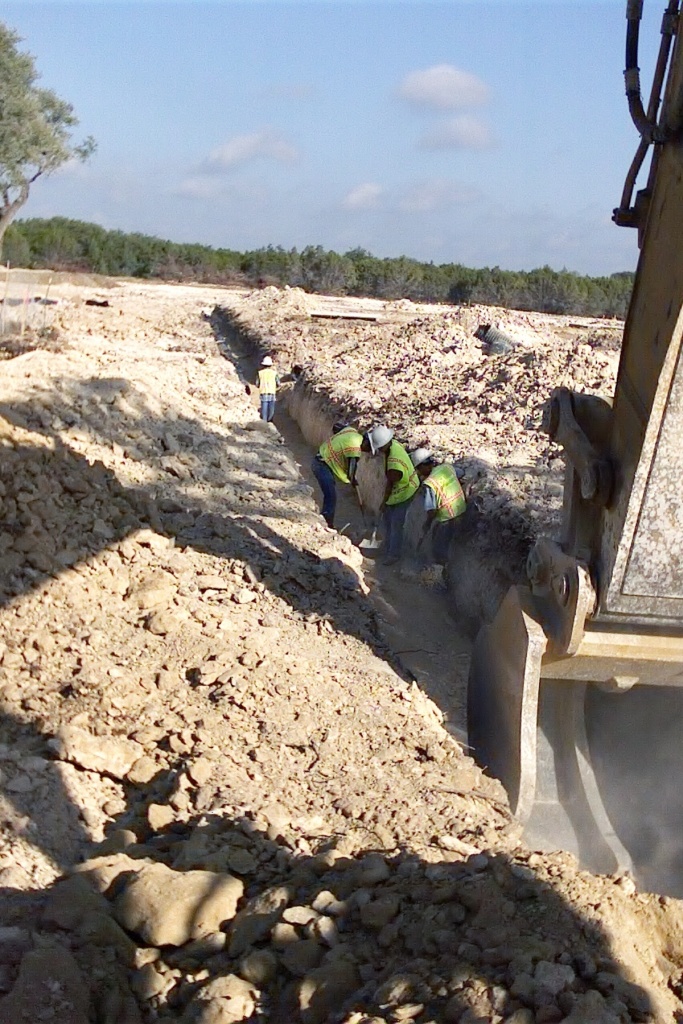

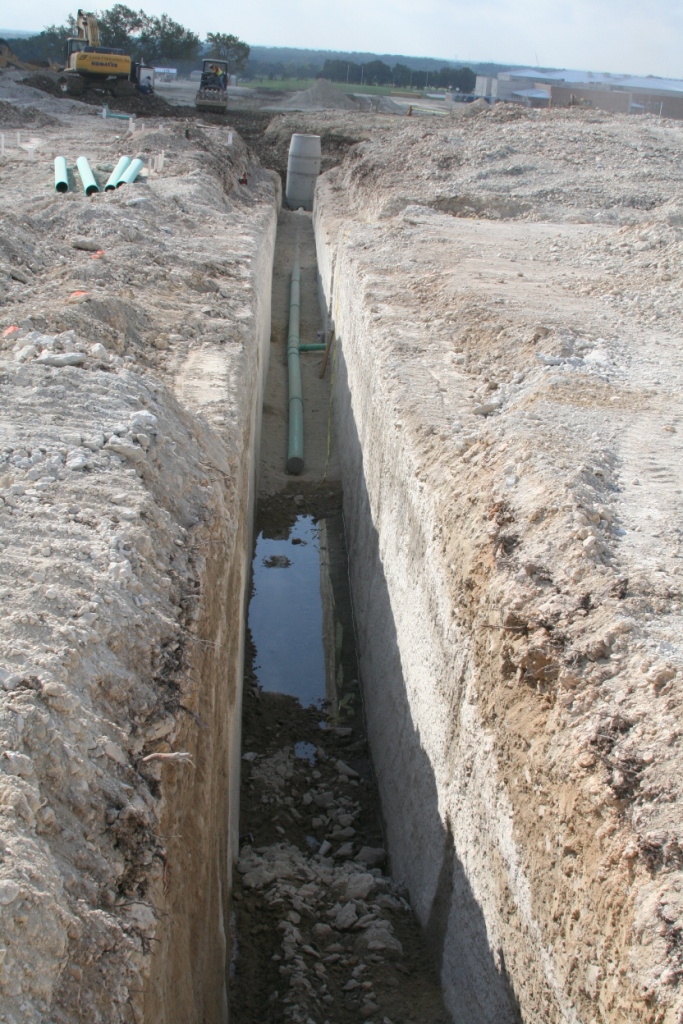

See below how the rock trench looks as though a trencher did the job.
Just think how much money can be saved not using a trencher!
The trench below is 54" wide and 12 feet deep.


Hi-Cap Multi-Ripper Bucket Cat 385
Hi-Cap Multi-Ripper Bucket Cat 385



These pictures show Austin Texas "Blue Shale" limestone.

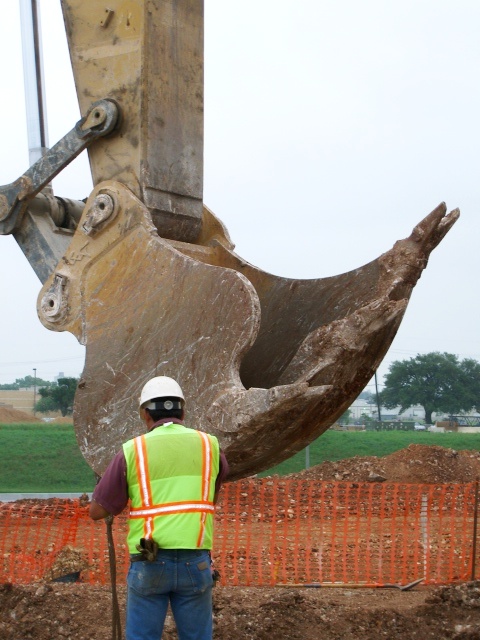

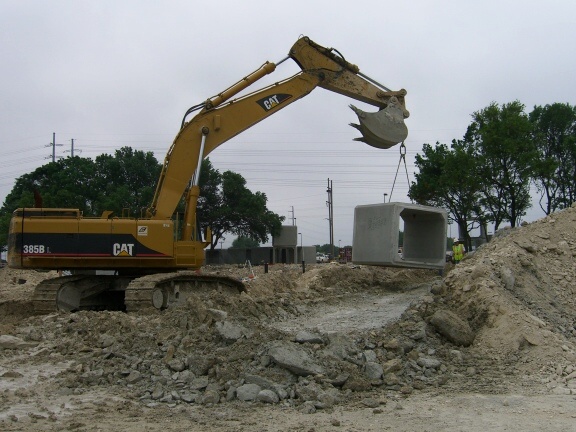

Blue Shale LimestoneLEA Hi-Cap MUlti-Ripper Bucket Pipeline

HCMRB PiplineHCMRB Cat 385 1

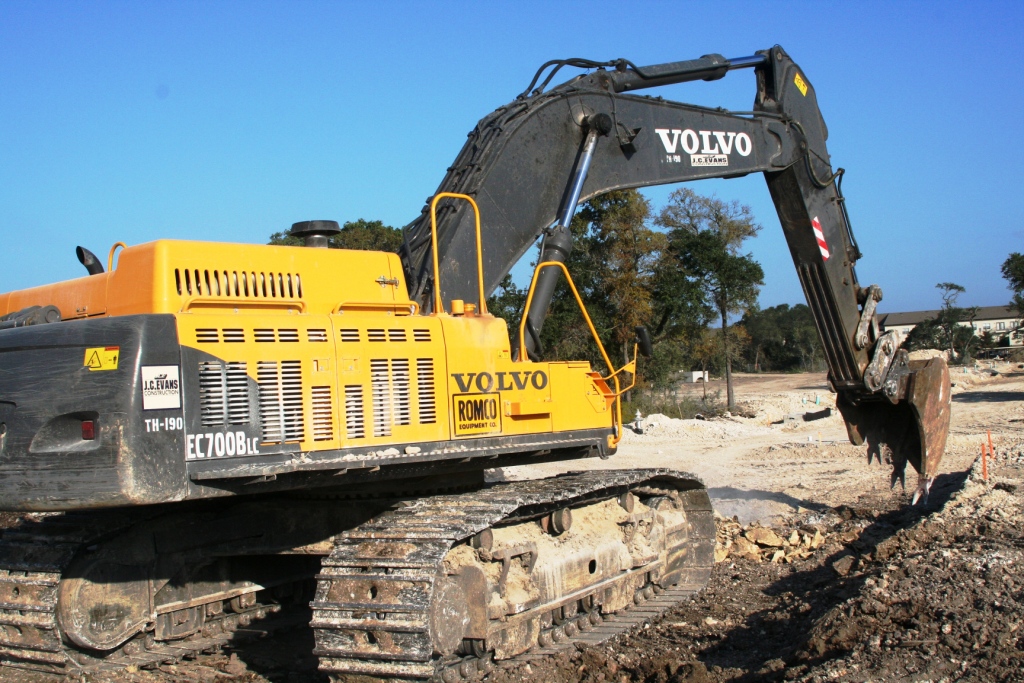

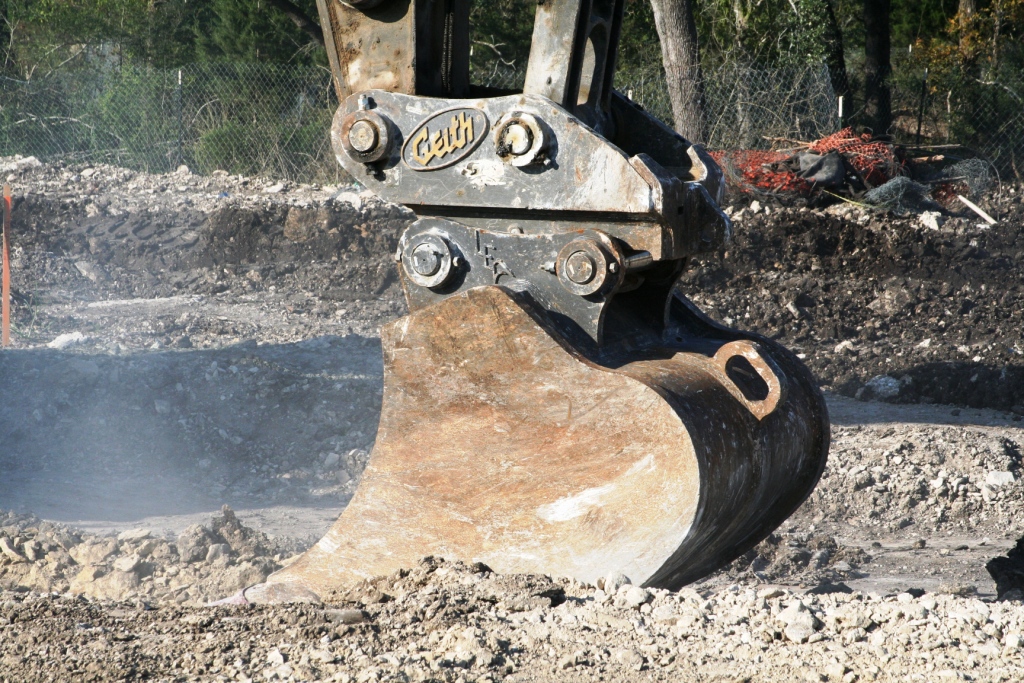

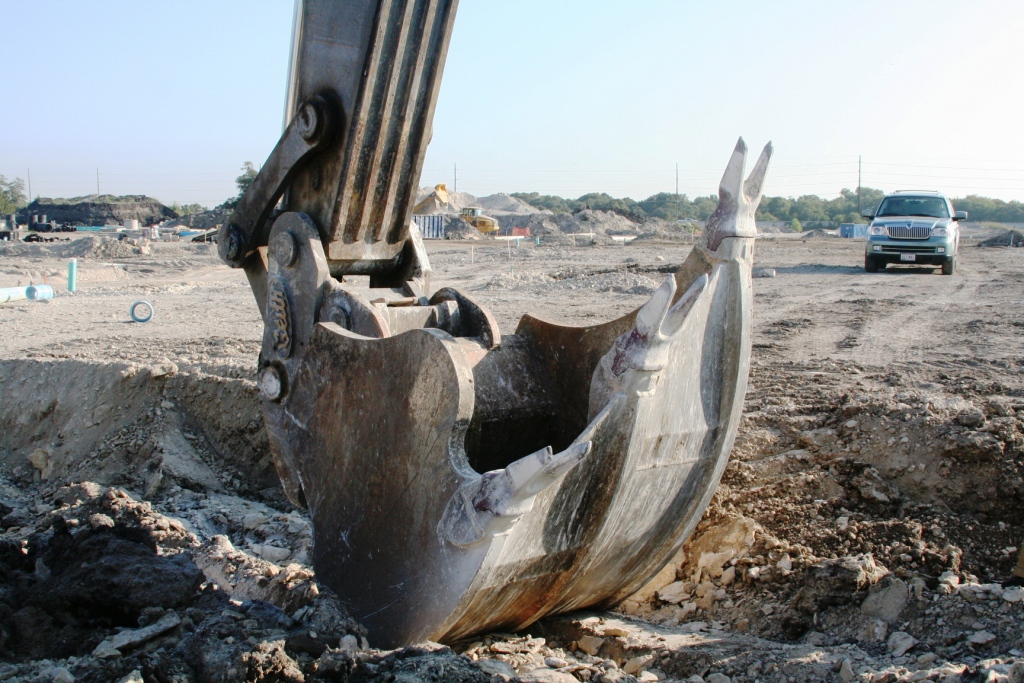

HCMRB Cat 385 3HCMRB EC700 1

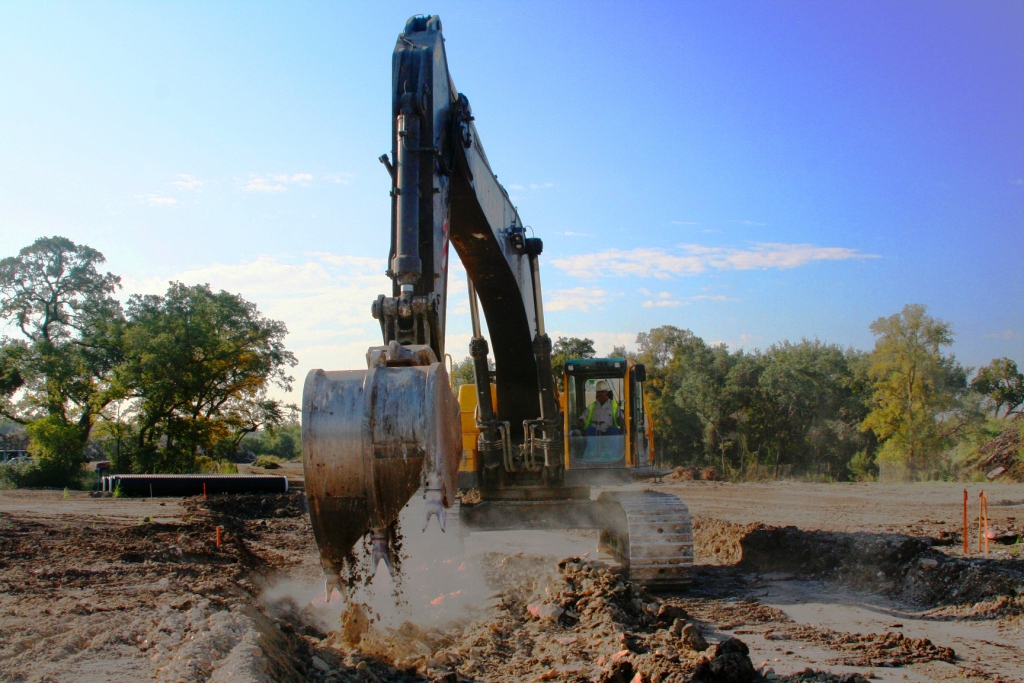

HCMRB EC700 2HCMRB EC700 3
HCMRB EC700 4Hi-Cap Multi-Ripper SHARC Bucket

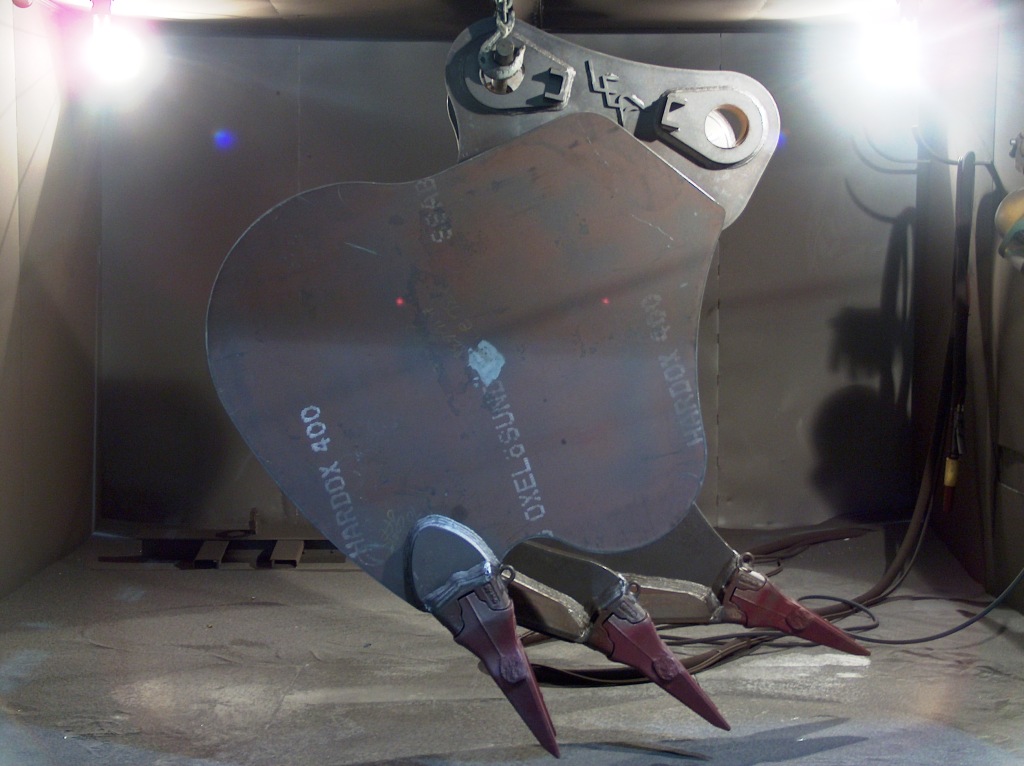

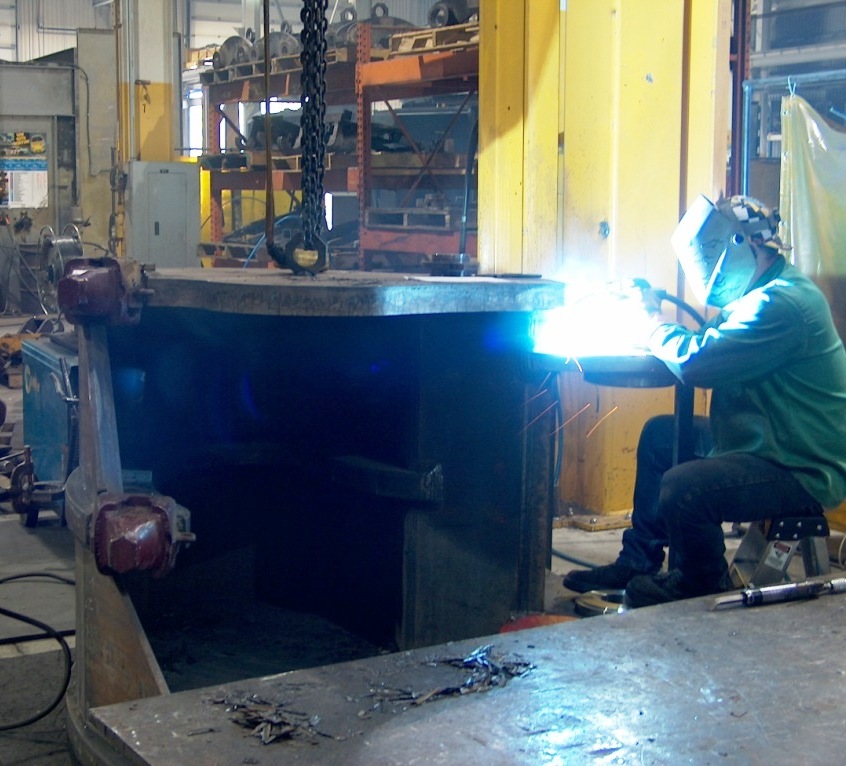

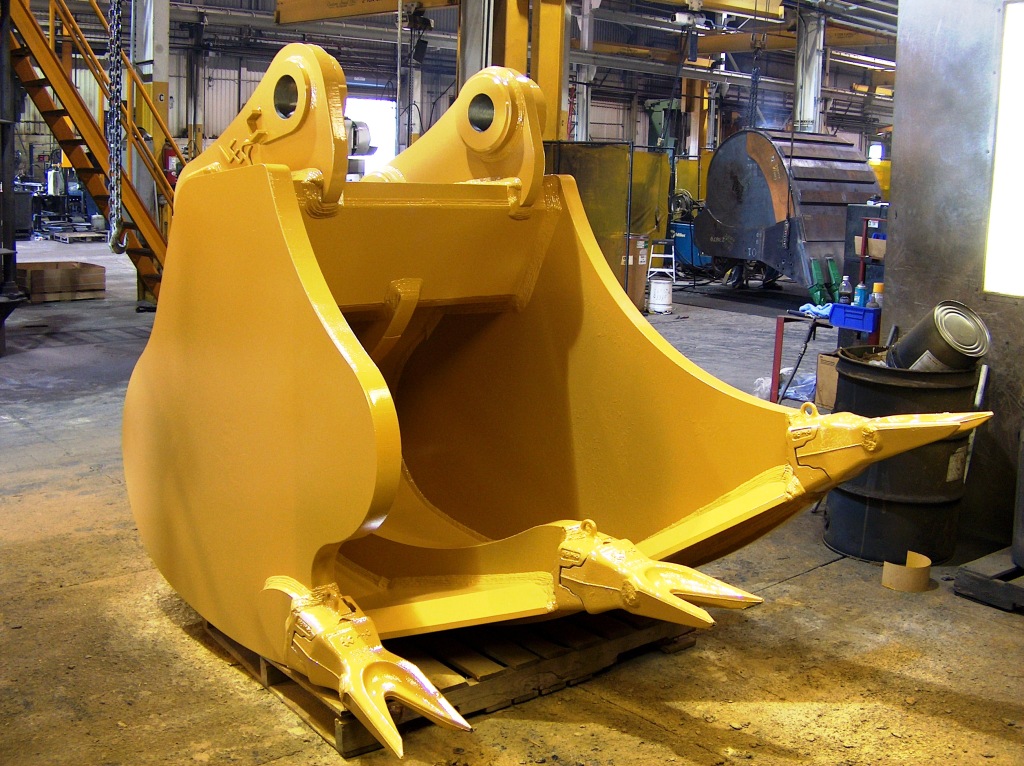

The following shows some of these powerful buckets being built.
Note the Swedish HARDOX 400 steel.


Multi-Ripper Production

Multi-Ripper Production
Multi-Ripper ProductionMulti-Ripper Production

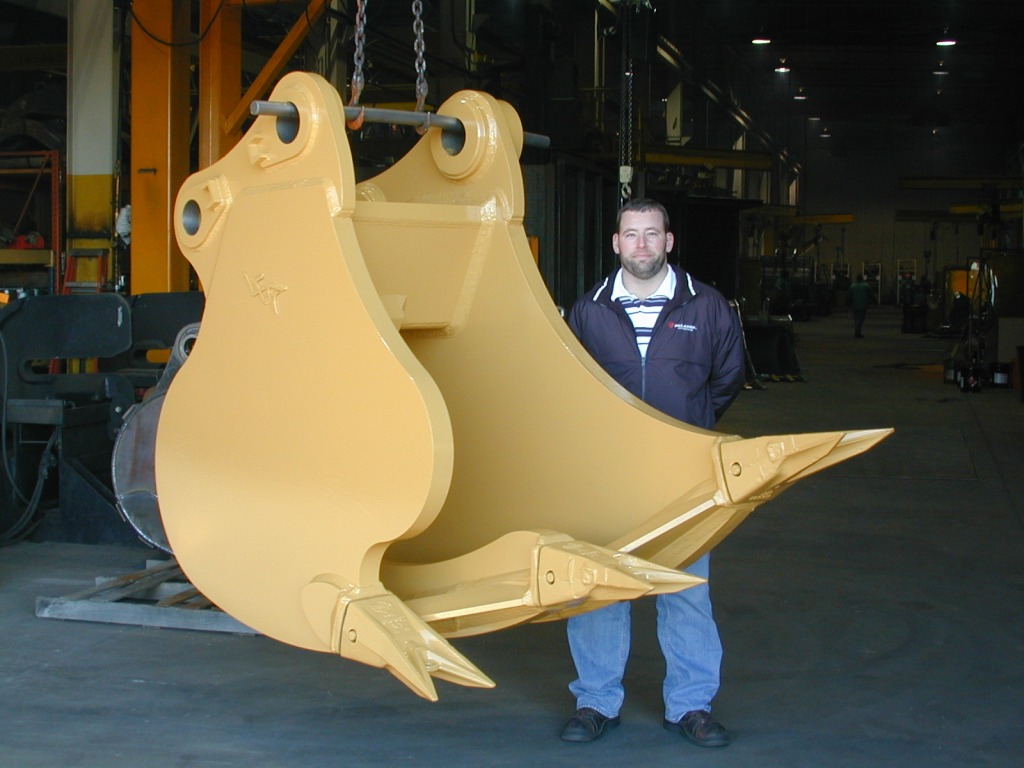

The following shows a narrow 30" wide version for utility work for a Cat 385.

Cat 385 HC Multi-Ripper Bucket 30W

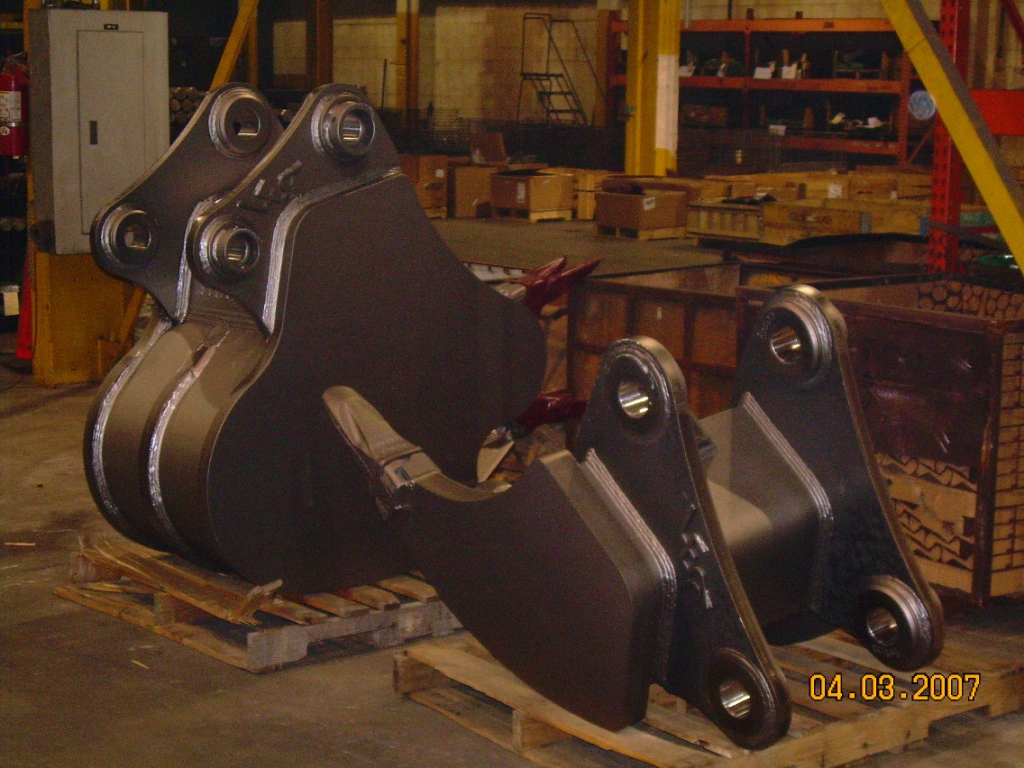

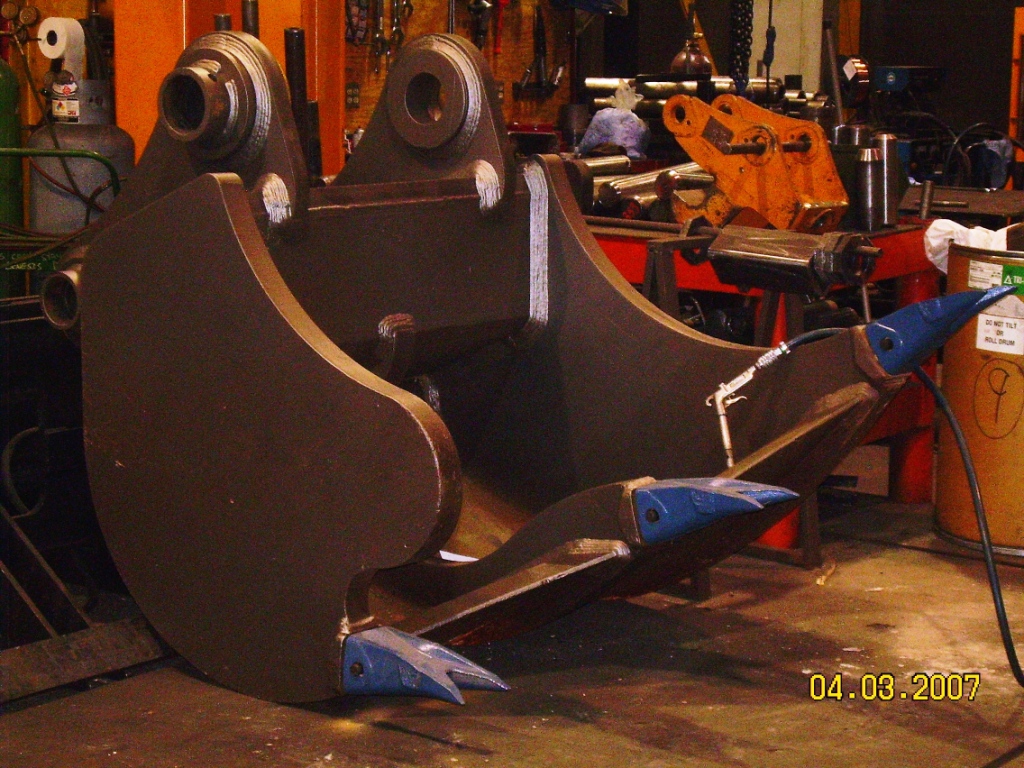

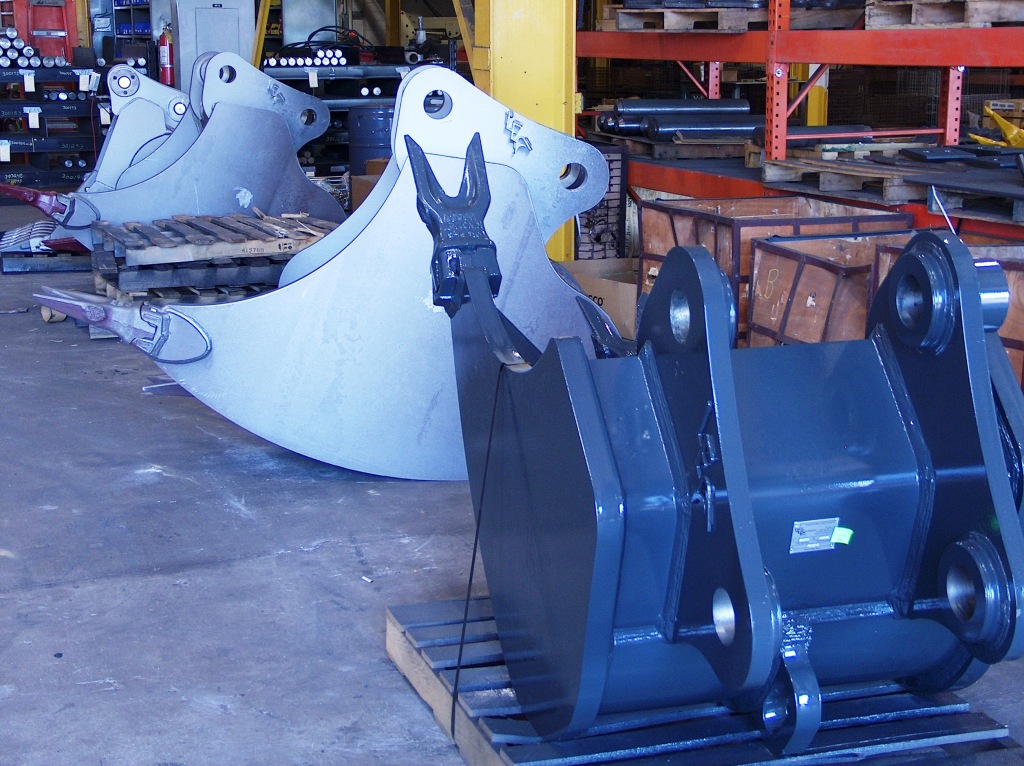

The following shows miscellaneous manufacturing images.

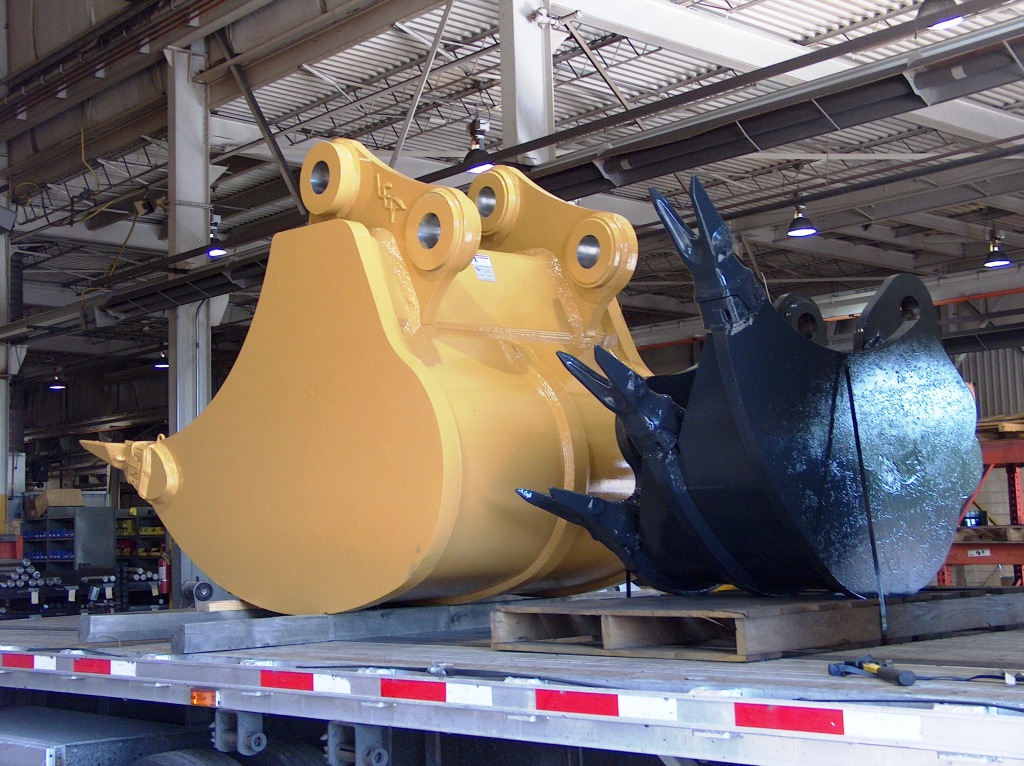

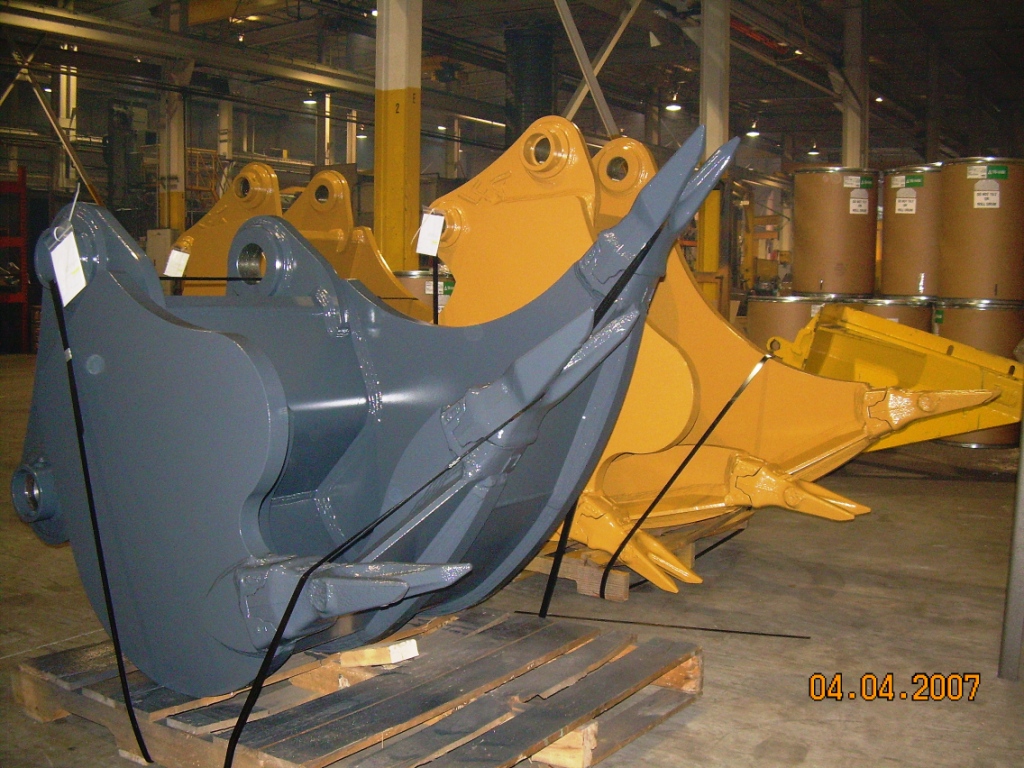

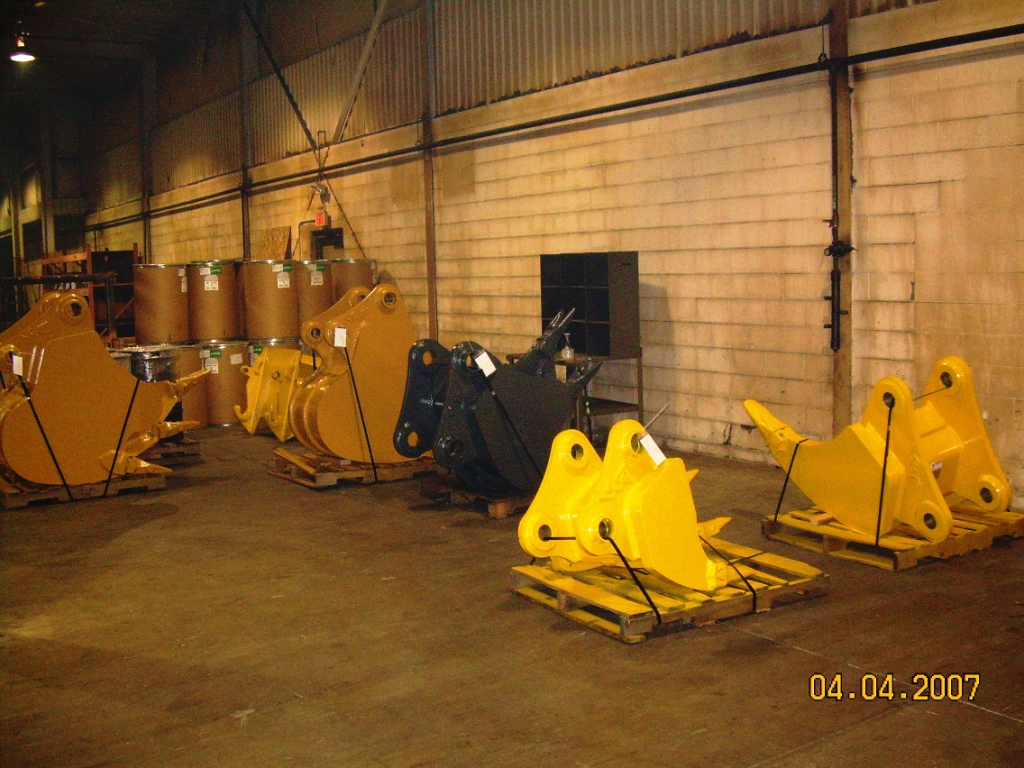

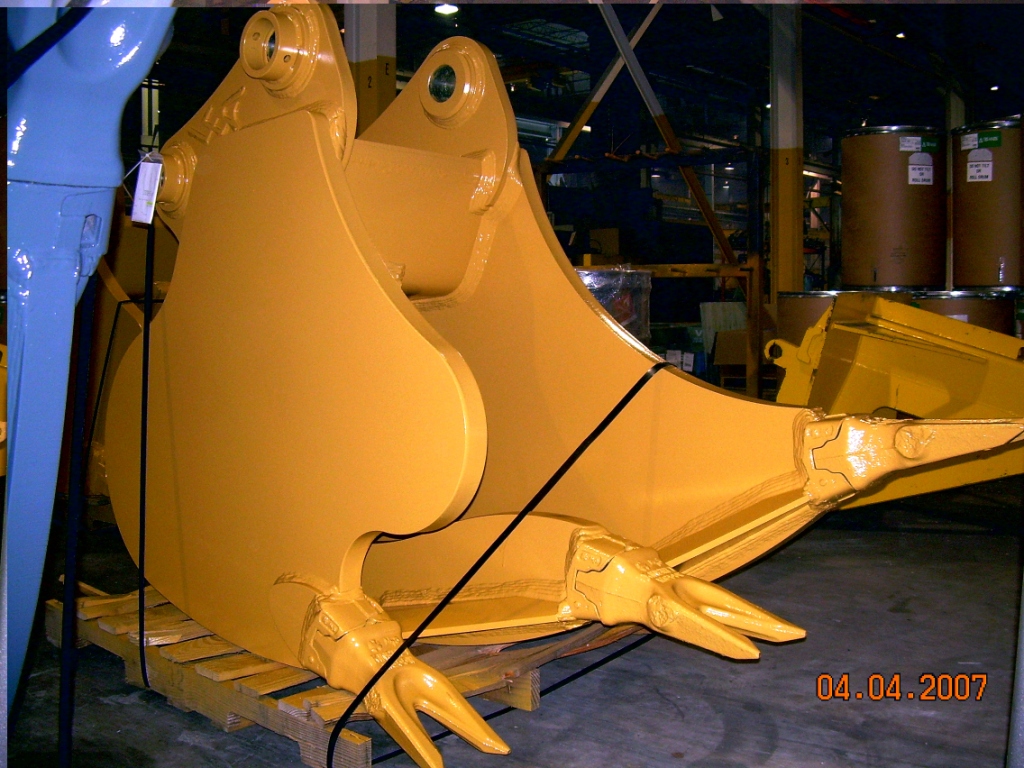

Multi-Ripper Products ShippingMulti-Ripper Products Shipping

Multi-Ripper Products ShippingMulti-Ripper Products Shipping
Hi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper Bucket

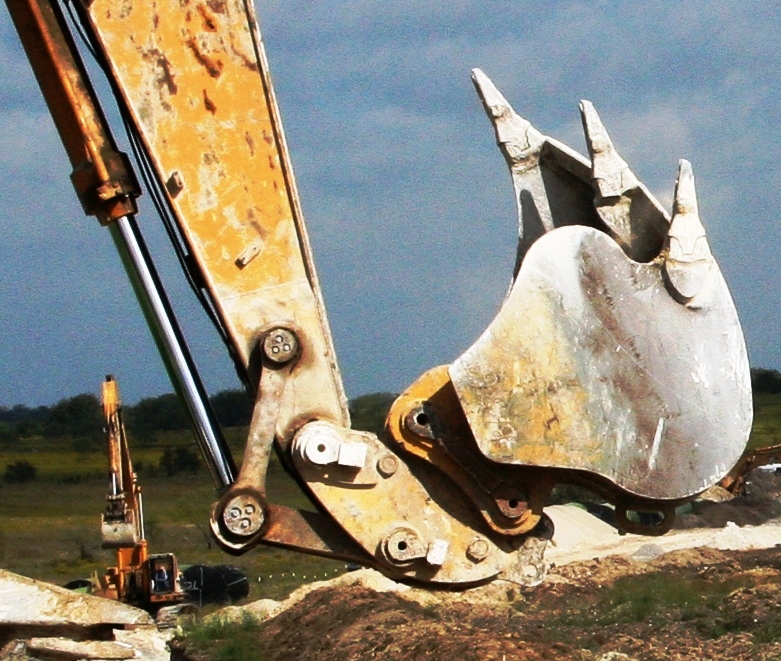

Hi-Cap Multi-Ripper Bucket
Hi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper BucketHi-Cap Multi-Ripper Bucket
Hi-Cap Multi-Ripper Bucket

email sales@leattach.com for more information
or call us to discuss your special application 508-829-4855

How do I benefit?

The Hi-Cap Multi-Ripper Bucket Multi-plies Your Money!

It lets you do what you couldn't do before!

It increases the effective size of your machine!

How does it do this?

These products rip rock up to 4 times faster than a hammer. They rip 10 times faster than a single pointed ripper. They greatly exceed all other designs of frost rock, or ripper buckets on the market. They rip to all depths leaving relatively flat bottom and side walls in the trench. The staggered shanks on an arc hit one at a time allowing the maximum breakout to be applied to each tooth. The tooth force is about 8 times that of a standard 5 tooth bucket because the shanks are short. Also, the shanks are the same distance from the stick pivot, so the shanks rip a relatively flat bottom.

Why should I believe that it works?

These products have been proven over the past 13 years and have been granted leters patents in the US and in many countries throughout the world. These designs won several design awards. Many customers have claimed this is the best attachment I've ever bought. See the endorsements

Description:

1.    What is a Multi-Ripper Bucket?  Designed to handle severe frost and rock removal jobs, the Leading Edge Attachments, Inc.’s Multi-Ripper
(R) Bucket is an engineering breakthrough that works on the same principal as the award winning Multi-Ripper! Just like the Multi-Ripper, the Multi-Ripper Bucket can be used for a wide range of tough material applications such as excavating frozen ground, coral, sandstone, limestone, shale, decomposed granite and caliche. This unique patent pending design has demonstrated that it can dig 7 to 10 times faster than using a single pointed ripper tooth. Under severe digging conditions, the performance also exceeds other designs of frost, rock, Vee-trenching, DigNRip™ Buckets, or other styles of ripper bucket combinations 2 to 1. The Multi-Ripper Bucket is the absolute best and most productive ripper bucket combination available on the market! The new Multi-Ripper Bucket is available to fit any excavator or backhoe above 6,000 pounds.

2.    How Leading Edge Attachment, Inc.’s Multi-Ripper Bucket Works:  The Multi-Ripper Bucket is similar to the Multi-Ripper and utilizes the patented
SharkTM Technology which results in the unit functioning similarly to that of a trencher except it uses the hydraulic excavator rolling action to rip. The staggered ripper teeth fracture the substrate in sequential order. No two ripper teeth align with each other, so that the maximum breakout force is applied sequentially to each tooth. The distance from the excavator stick pivot to the tooth tips is also shorter than the standard bucket for the machine. The shorter distance actually multiplies the tooth tip force. The castle top shape grooves cut by the front ripper teeth facilitates the fracturing process of the next swipe. The rolling of the Multi-Ripper Bucket, by extending the bucket cylinder, always provides the full multiplied breakout force individually on each tooth so that the substrate is ripped out by each individual tooth lifting action. The result is a relatively flat trench bottom due to the fact that the ripper tooth tips all lie on a constant radius with a center of rotation that is close to the tractor loader backhoe or hydraulic excavator “dipper stick” bucket pivot. Due to the leading edges and the back-sheets, the Multi-Ripper Bucket can also scoop material, thus eliminating the need to switch back to a bucket for clean up. The Multi-Ripper Bucket will function, and greatly exceed, any application, or material, that a single pointed ripper tooth can be used for.

3.    Multi-Ripper Bucket Operating Procedure:  With the stick in the near vertical position, use a combination of bucket and crowd cylinder functions while providing boom cylinder down pressure. The bucket cylinder action provides the greatest force while the stick sweeps. Since no two teeth are in alignment, when the Multi-Ripper Bucket is rolled, each tooth engages separately so that each tooth fractures the groove cut by the preceding tooth. Roll the Multi-Ripper Bucket completely as the stick is being moved so that all teeth have engaged the material. The Multi-Ripper Bucket is to be rolled as the stick is moved, thus causing a very powerful, fast and effective ripping and scooping motion that is easy on the machine and operator and is highly effective.

Multi-Ripper SHARC Operating Procedure

4.    What makes this product different from its competitors?  The Multi-Ripper Bucket™ is different from anything on the market. There is no excavator ripper bucket combination that has multiple shanks staggered and on an arc so that each tooth hits individually. The closest products on the market in function, that the Multi-Ripper Bucket will outperform or replace are other ripping bucket designs similar to the LEA DigNRip™ Bucket, or the single pointed ripper.
a.    The Multi-Ripper Bucket is More Productive than the Vee Trenching Bucket, the DigNRip bucket designs or the ripper bucket combination designs, because it is more like a ripper than a bucket! The Multi-Ripper Bucket has only three teeth that engage one tooth at a time. There is no other bucket that engages throughout its travel while engaging one tooth at a time. The DigNRip style has teeth on the corners of the bucket that engage at the same time and thus effectively cut down on the ripping force by a factor of two! No other bucket has this ripping ability!

b.    The Multi-Ripper Bucket greatly out produces the single-pointed ripper because it can rip and scoop the broken material out of the way at the same time! Not only are the forces higher and there are more teeth to rip, but there is now a way to scoop the material out of the way to expose virgin material. The process of switching back and forth from the ripper to the bucket can be time consuming in some applications. It is obvious that the Multi-Ripper Bucket is at least three times faster than a single pointed ripper because it has three teeth; however, it is actually 10 times faster because of the force multiplication, the multiple teeth, and its ability to scoop the material out of the way.

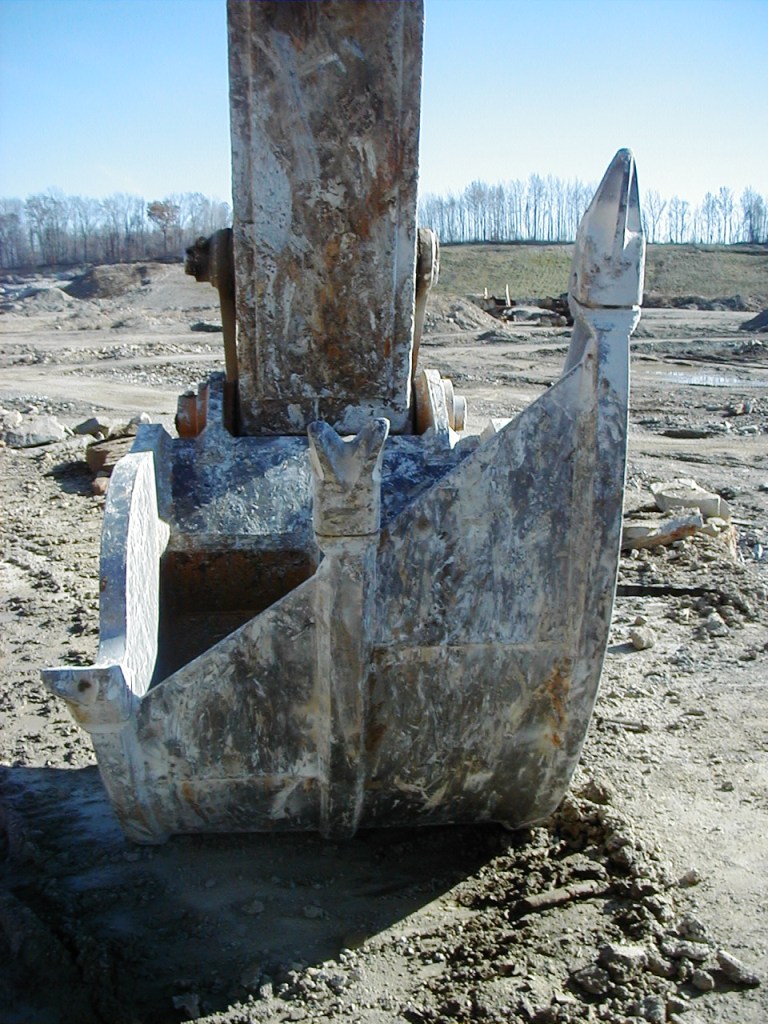

Multi-Ripper Bucket
Multi-Ripper Bucket

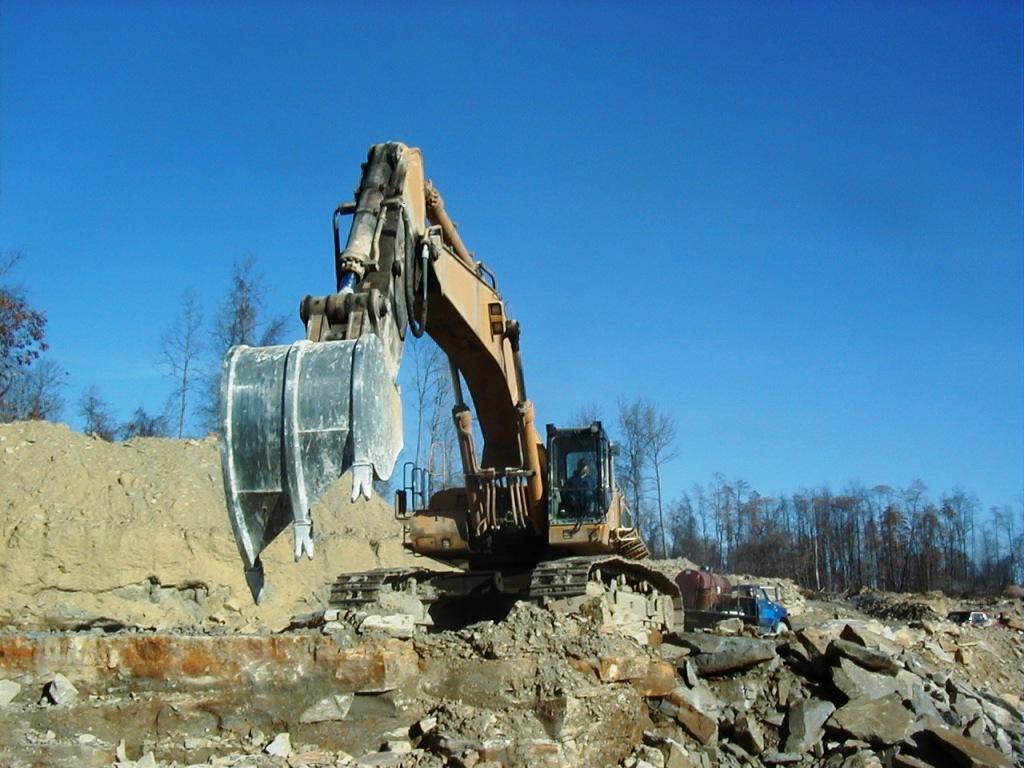

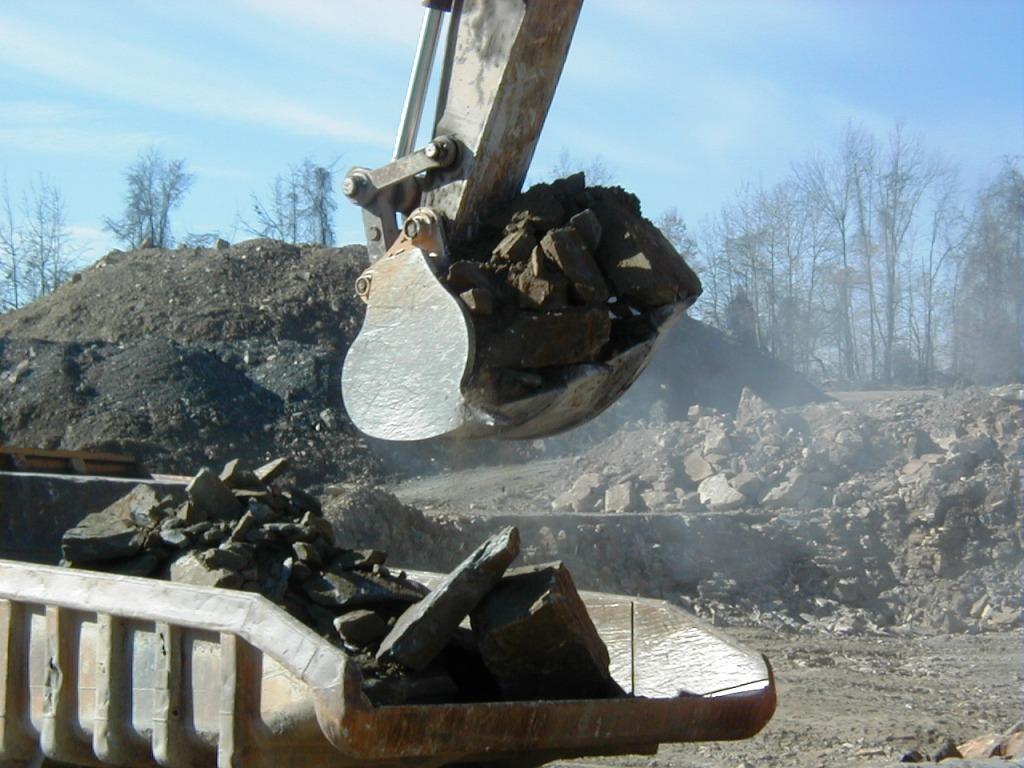

The Hi-Cap Multi-Ripper Bucket Also Multi-plies Money in the Quarry!

  The Leading Edge Attachments, Inc. Hi-Cap “SHARC (SHanks on an ARC”) Multi-Ripper(R) Bucket saves money for White Rock Silica Sand Co. Inc., a sandstone quarry of Greenville, Pennsylvania. The MR Bucket increases yield, eliminates the need for their other excavator, is easier on their machine, and makes them less dependant on the weather.

Before they had the MRB, they had to rip with a single pointed ripper with one excavator, and load with the other. In order to keep the flow moving, the ripping excavator would rip a whole portion of the sandstone quarry at a time. The single pointed ripper would be hard on the machine, produce a lot of sand and, if it rained before they had a chance to load, the sandstone would absorb moisture, which would gum-up their crushing plant. Since their new MR Bucket allows them to rip and scoop at the same time, they only need to use one excavator. It also allows them to load as soon as the material is ripped so the material doesn’t absorb as much moisture. Since the MR Bucket is designed with three shanks on an arc, the ripping motion is smooth and considerably easier on the machine and operator. Also, since they are loading as they rip, there is less sand produced from re-handling the rock. Another advantage of the MR Bucket is that they are able to remove the rock as it is being ripped.  This helps considerably in their operation because they can see and keep a level pit floor to work from as they move along, so no other equipment is needed.

All of these factors add up to a huge savings for their business because the fuel and maintenance for a Cat 245 machine has been eliminated (they now just keep this other machine on hand for emergencies), the sand yield has dropped from 15% when blasting to 5 % with the MR Bucket (they want to minimize the amount of sand produced), the machine and operator are experiencing less abuse, and they are less concerned with the weather effecting the operation.

Troy Adzima, Vice President of Lakeland Sand & Gravel, Inc. and White Rock Silica Sand Co., Inc. says:

“We are very happy with the performance of the Multi-Ripper Bucket. We have tried many different methods of mining the sandstone. We have tried blasting, however, that increases the amount of sand produced, makes us more dependant on the weather, and irritates the neighbors. We have tried several different types of machines, one that strikes the rock and ones that have spinning sets of teeth, all of which either produce a lot of sand, or simply do not produce fast enough for our operation. Over the last few years we have been ripping and loading with two large excavators. Now, with the use of the Multi-Ripper Bucket, we are able to do the same operation with only one machine, while being easier on the machine and operator, and with a better rock yield. I think that the bucket is great for our operation and will help us continue mining efficiently.”

The Leading Edge Attachments, Inc.’s “SHARC™” (SHanks on an ARC) Multi-Ripper™ Bucket is an engineering breakthrough! The Multi-Ripper and Multi-Ripper Bucket can be used for a wide range of tough material applications such as excavating frozen ground, coral, sandstone, limestone, shale, decomposed granite and caliche. These unique patent pending designs have demonstrated that they can rip up to 4 times faster than a hydraulic hammer and dig up to 10 times faster than using a single pointed ripper tooth!  The performance exceeds all other designs of any other frost, rock or ripper buckets. This design is also a mining industry breakthrough for the purpose of wall and roof rock scaling, and open quarry mining! The Multi-Ripper is the absolute best and most productive ripper available on the market and the Multi-Ripper Bucket is the undisputed best combination ripper and bucket on the market! The new Multi-Ripper products are constructed with tough Swedish Hardox 400 steel and available to fit any excavator or backhoe above 6,000 pounds. Over the past two years, hundreds of these units have been sold through dealers, and directly, to very satisfied customers! The Multi-Ripper won Construction Equipment magazine’s to 100 products of the Year award for 2003, and the Multi-Ripper Bucket development followed. Leading Edge Attachments, Inc. is currently licensing the product to Wedgelock LTD in New Zealand for manufacture and sales in New Zealand and Australia.

Each Multi-Ripper product functions similarly to that of a trencher except it uses the hydraulic excavator rolling action to rip. The staggered ripper teeth fracture the substrate in sequential order. No two ripper teeth align with each other, so that the maximum breakout force is applied sequentially to each tooth. The Multi-Ripper is considerably shorter thus causing the force multiplication effect that can be up to twice the normal breakout force of the machine! For example, the breakout force generated using the standard bucket on a Cat 375 is 75,400 pounds shared across the five bucket teeth. The Multi-Ripper on the same machine generates 123,770 pounds of breakout force and, through one tooth at a time! Also, when the first tooth breaks out a chunk, the second tooth is there to come slamming down like a hammer ripping out the second chunk, and then the third tooth does the same! The castle top shape grooves cut by the front ripper teeth facilitates the fracturing process of the next swipe. The rolling of the Multi-Ripper, by extending the bucket cylinder, always provides the full multiplied breakout force individually on each tooth so that the substrate is ripped out by each individual tooth lifting action. The result is a relatively flat floor due to the fact that the ripper tooth tips all lie on a constant radius with a center of rotation that is close to the tractor loader backhoe or hydraulic excavator “dipper stick” bucket pivot. This method is very productive and will greatly extend the life of the machine and buckets.

All of these features add up to big potential savings to a mining operation!



Please know that adding extra plates or adding hard-facing is not necessary, and not recommended. Hard-facing can actually cause damage to the HARDOX material by inducing tiny cracks in the material, and will thus void our warranty. If any welding is required or desired, please contact LEA, Inc. Engineering for the special HARDOX welding procedure.
